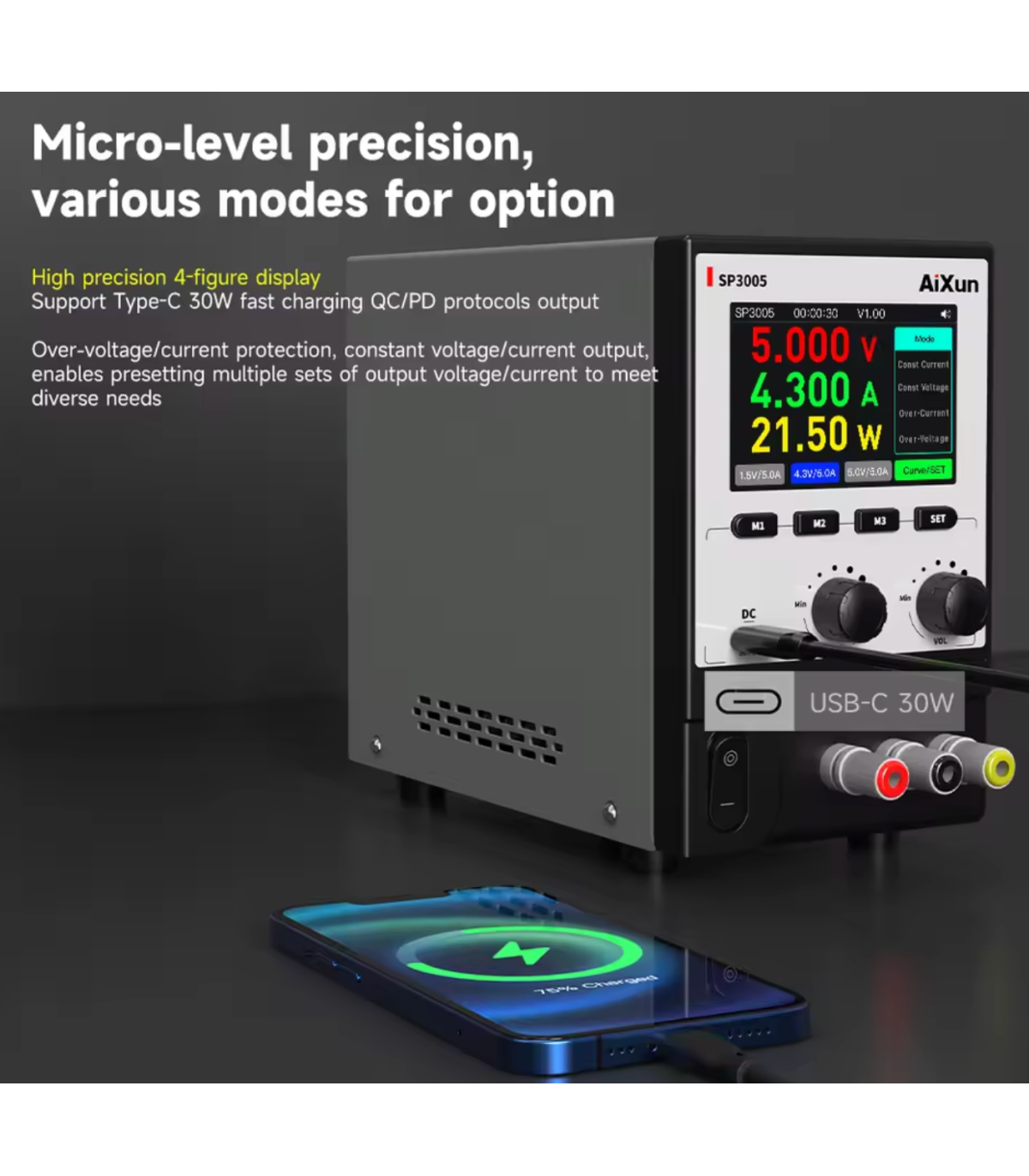

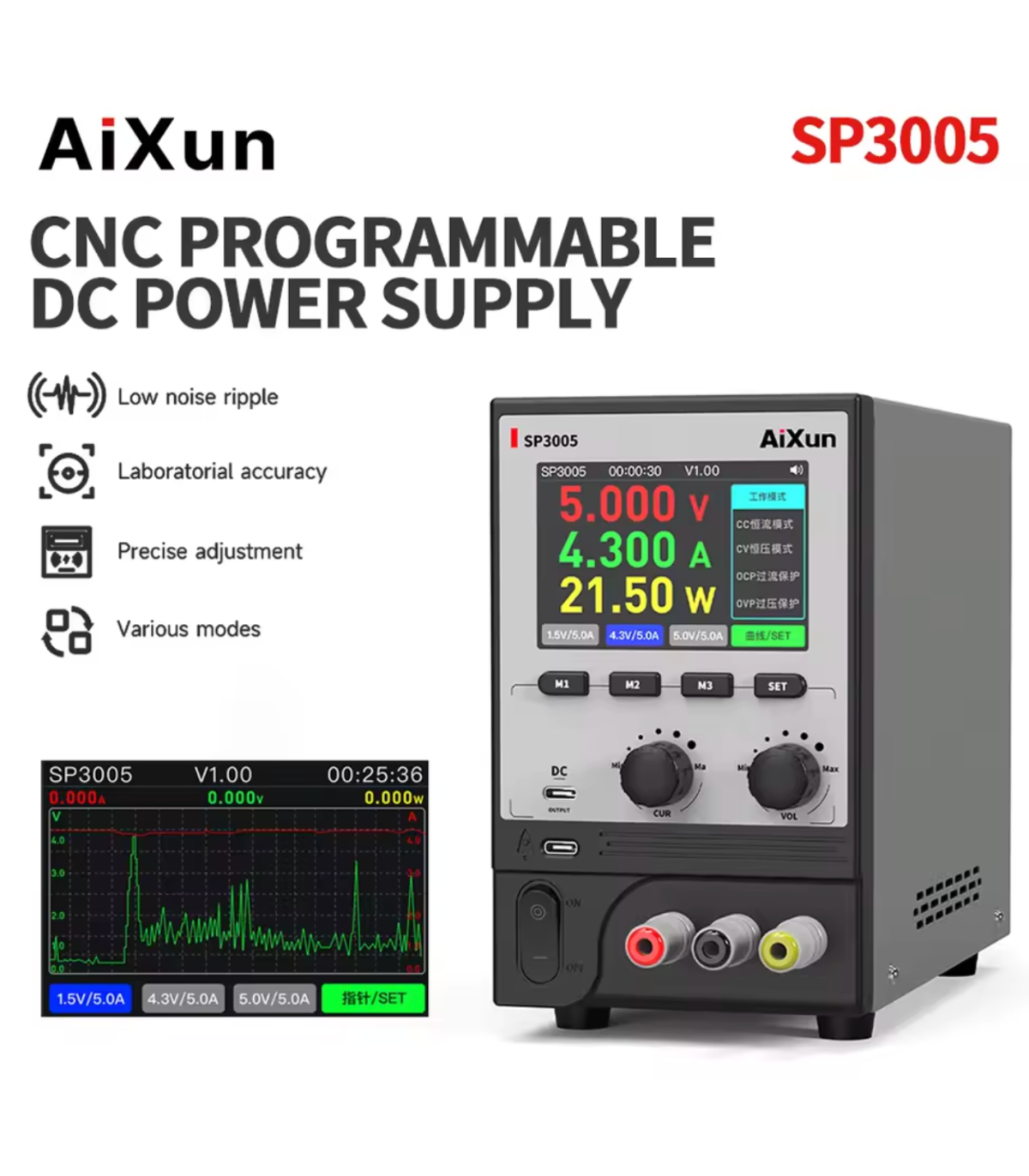

The Aixun SP3005 Programmable DC Power Supply delivers high precision, low ripple, and stable output performance, making it ideal for mobile phone repair, PCB testing, laboratory work, and electronic projects. Its 3.5-inch IPS display shows voltage, current, and power in real time, ensuring accurate monitoring during sensitive repair tasks.

With programmable adjustment, constant voltage/constant current modes, advanced protection features, and USB communication for data logging and PC control, the SP3005 offers versatility and reliability for both professionals and repair technicians.

Key Features

• Programmable regulated output: Adjustable voltage (0–30V) and current (0–5A)

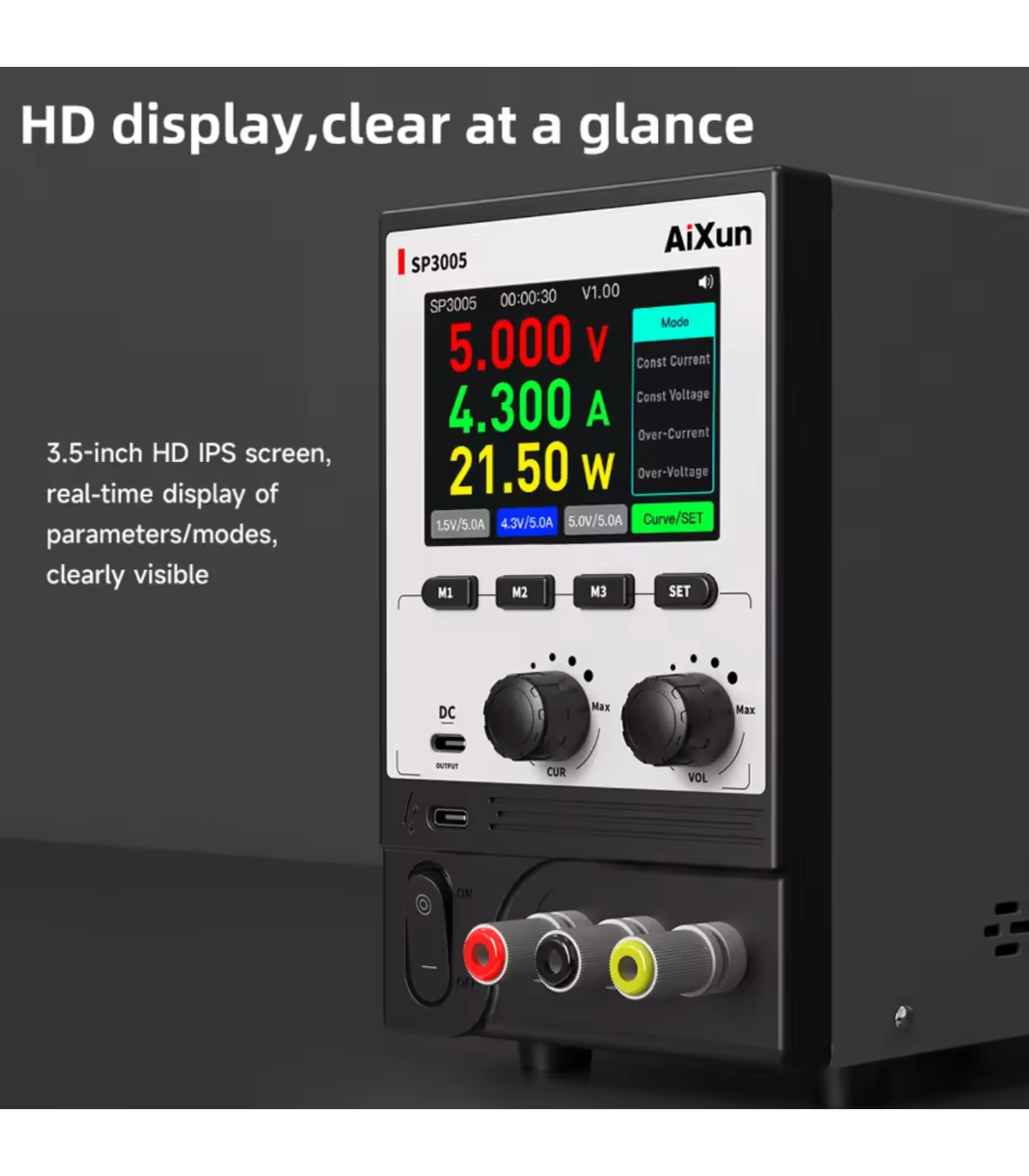

• 3.5-inch IPS display: Real-time display of voltage, current, and power

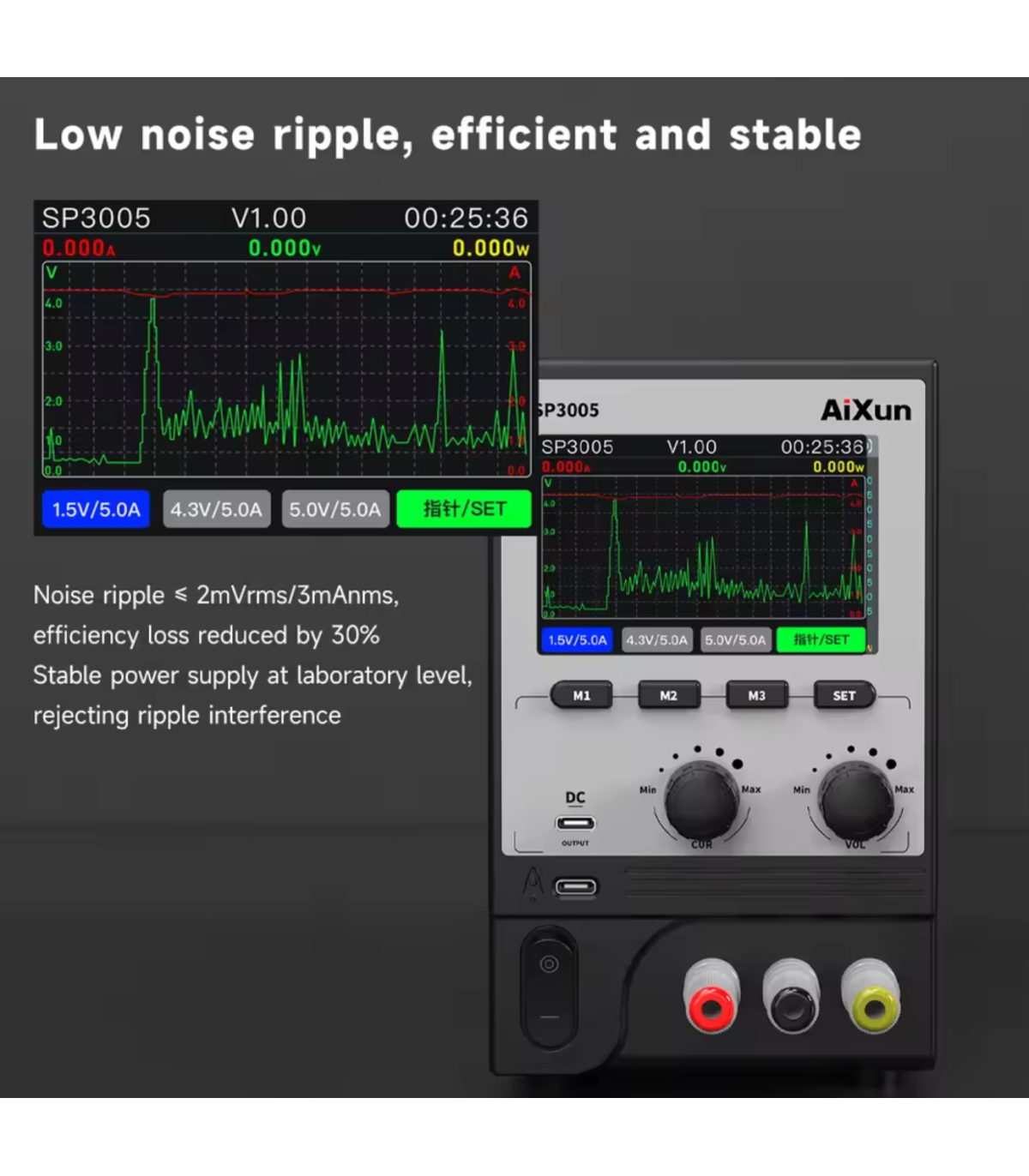

• High precision / Low ripple: Voltage ripple ≤2mV rms & current ripple ≤3mA rms

• CC/CV modes: Switch between constant voltage and constant current operation

• Built-in protection: Over-voltage (OV), over-current (OC), and short-circuit protection

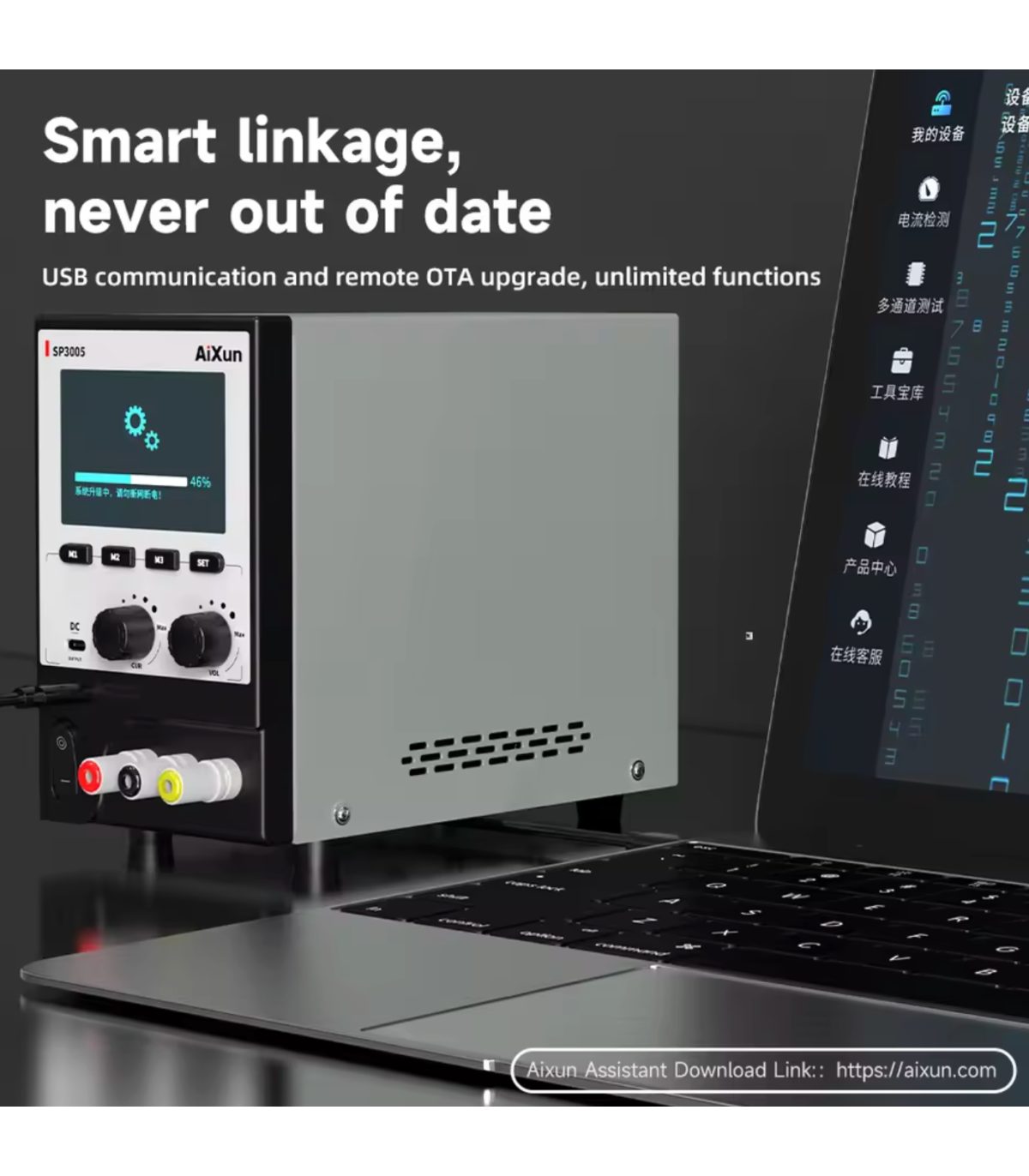

• USB communication: Supports data logging, remote control, and firmware upgrades

• Durable construction: Metal housing with front-panel control knobs and buttons

Technical Specifications

• Brand: Aixun

• Model: SP3005

• Input Voltage: 230V

• Rated Power: 150W

• Voltage Output Range: 0–30V adjustable

• Current Output Range: 0–5A adjustable

• Display: 3.5-inch IPS screen

• Communication Interface: USB

• Load Regulation:

  • Voltage ≤0.01% + 2mV

  • Current ≤0.1% + 5mA

• Linear Regulation:

  • Voltage ≤0.01% + 3mV

  • Current ≤0.1% + 3mA

• Ripple:

  • Voltage ≤2mV rms (20Hz–20MHz)

  • Current ≤3mA rms

• Material: Sheet metal + plastic

• Dimensions: 200 × 100 × 170 mm

Advantages

• High precision and very low ripple output

• Ideal for mobile phone repair, PCB testing, prototyping, and DIY electronics

• Stable and reliable output for sensitive IC, CPU, and logic board work

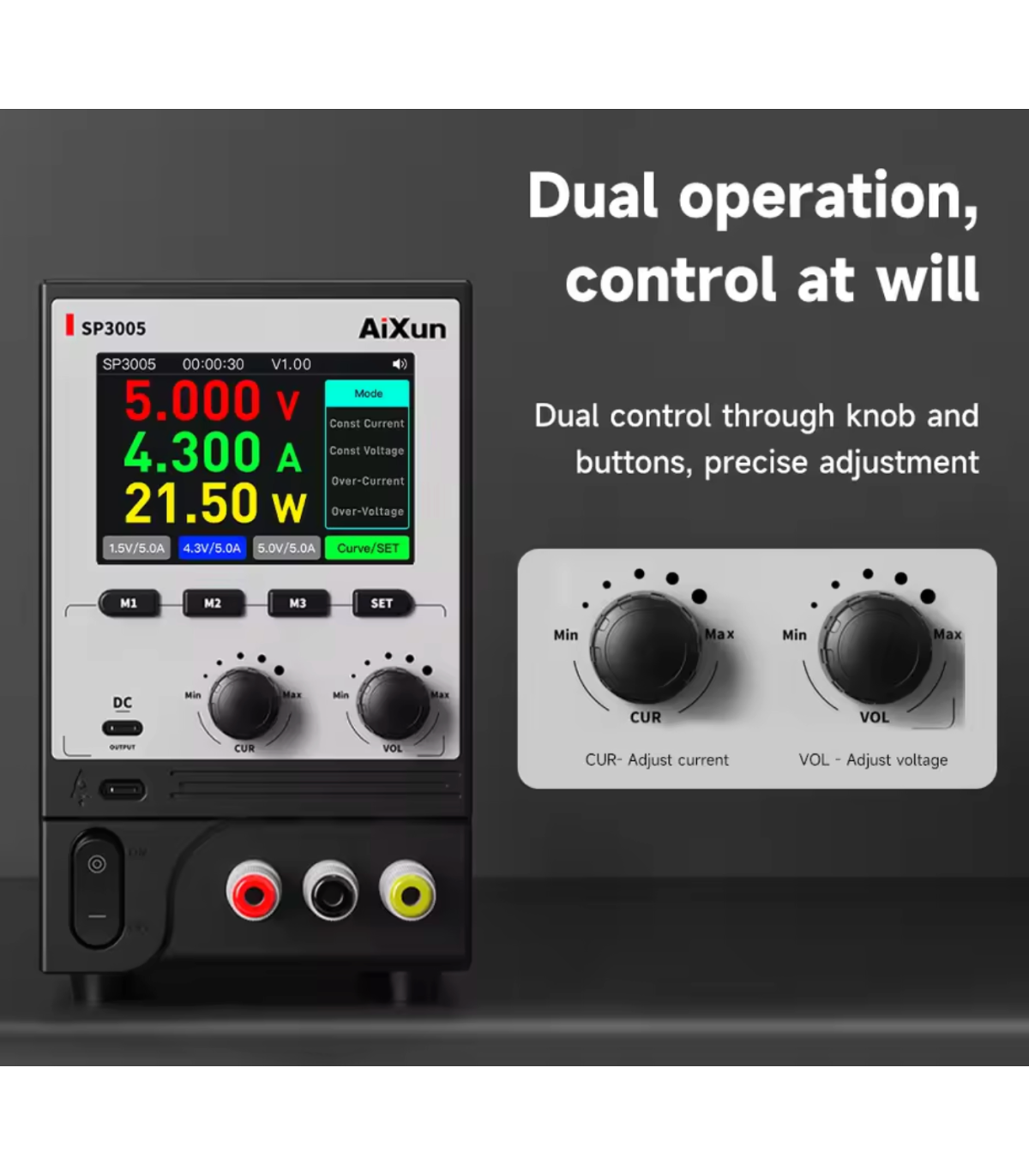

• Easy to operate; adjustable with front knobs and intuitive display

Package Includes

• 1 × Aixun SP3005 Programmable DC Power Supply
