Solderless Silver Conductive Adhesive Paste - PCB Electronics Repair Soldering

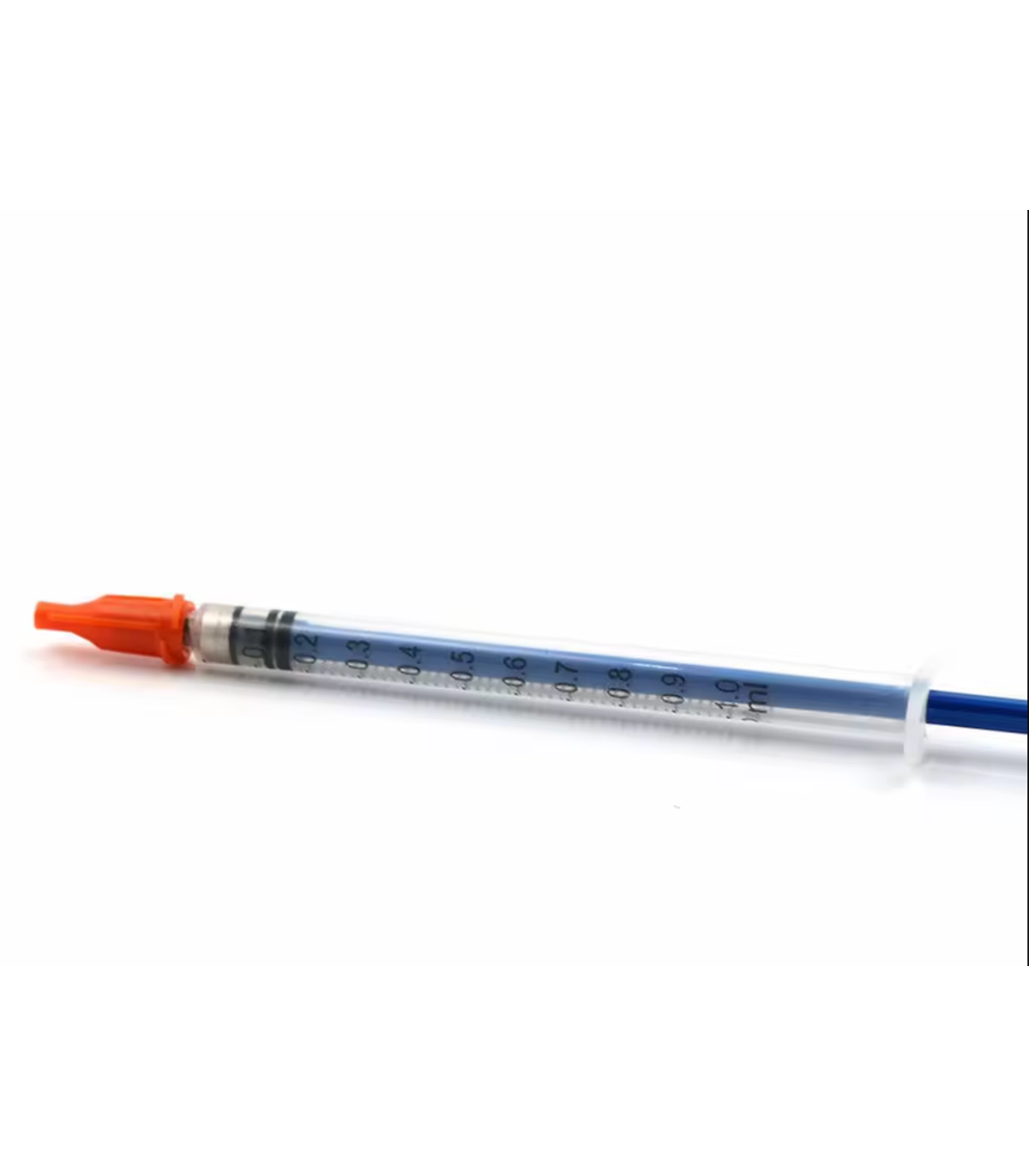

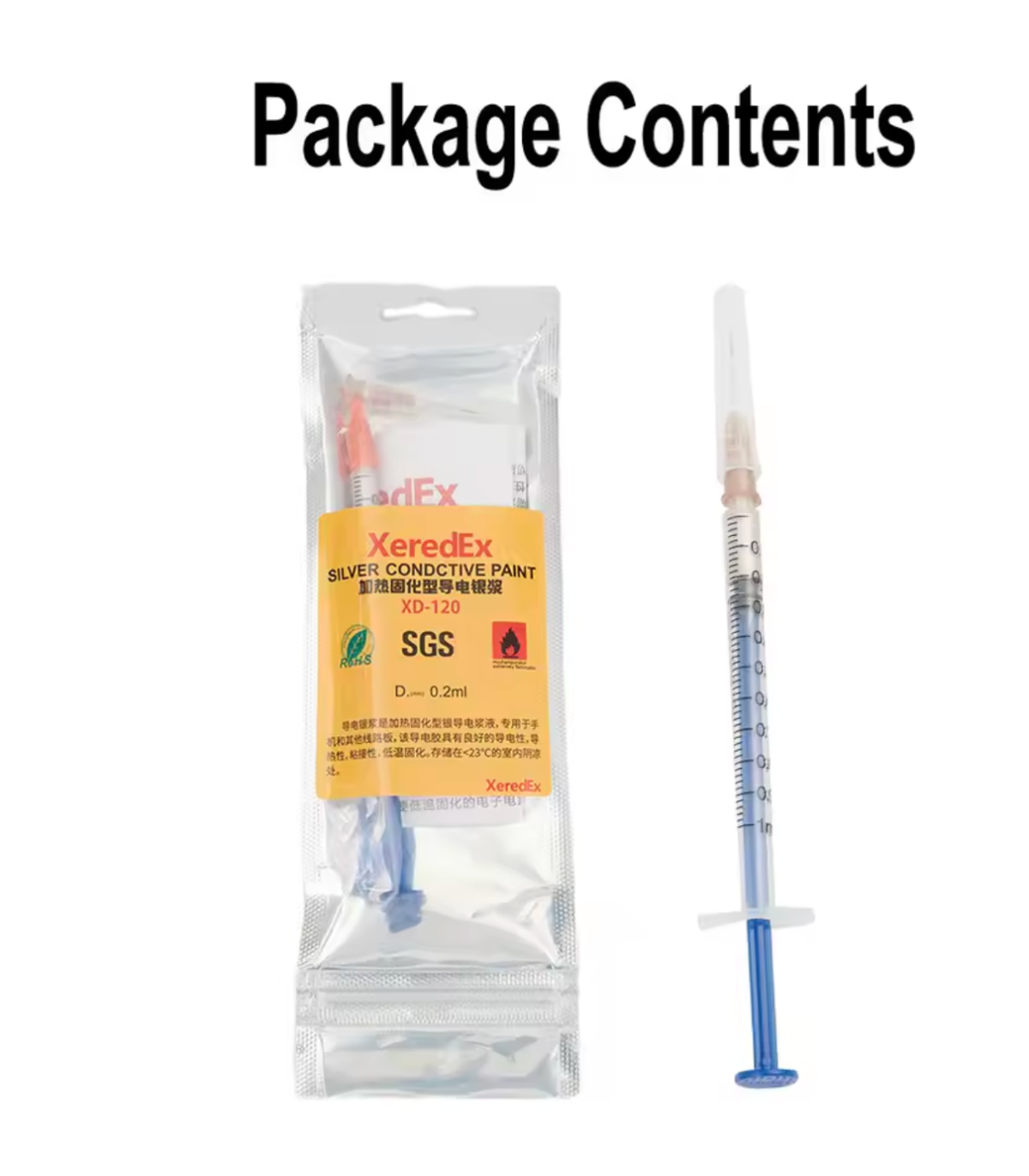

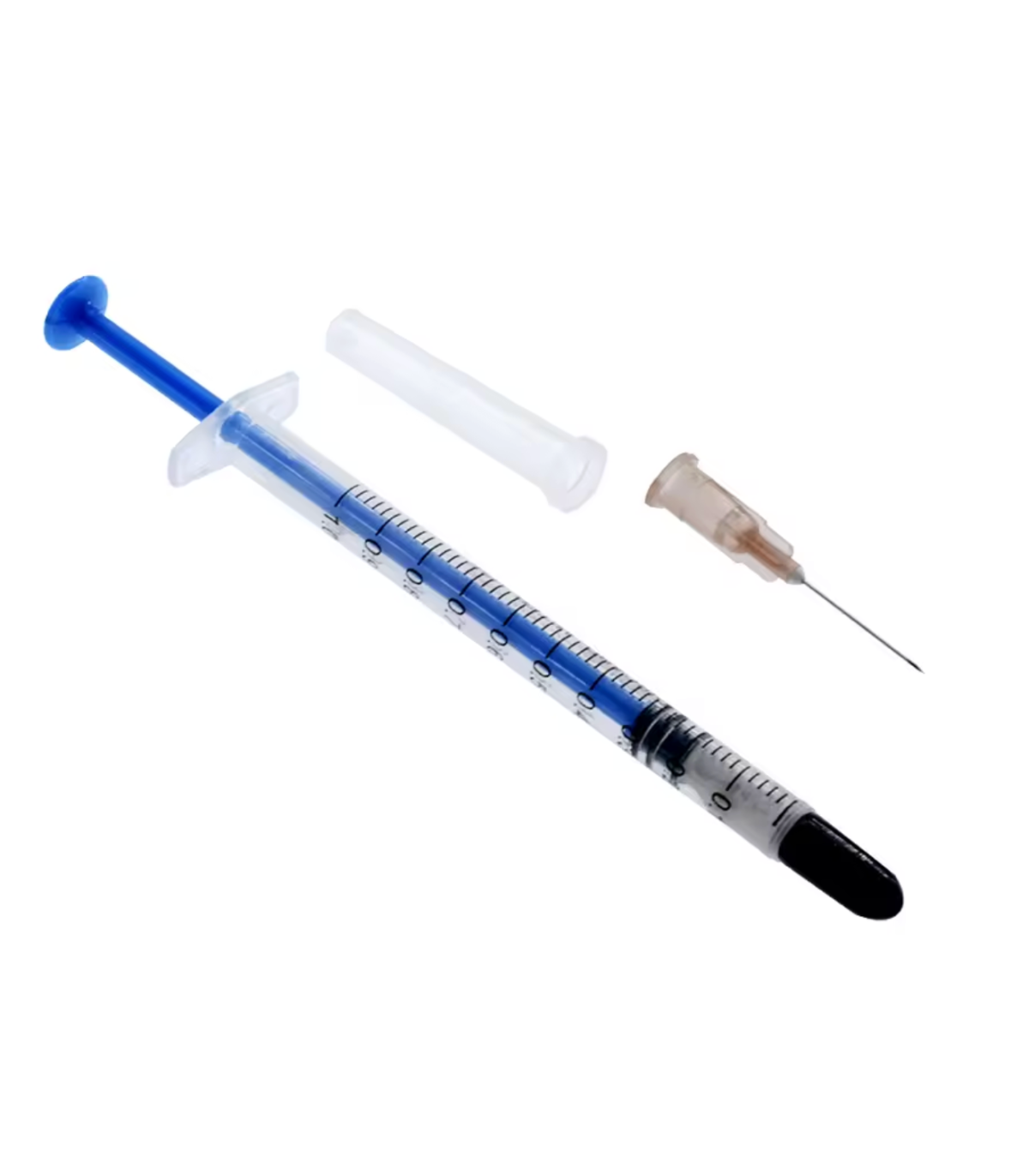

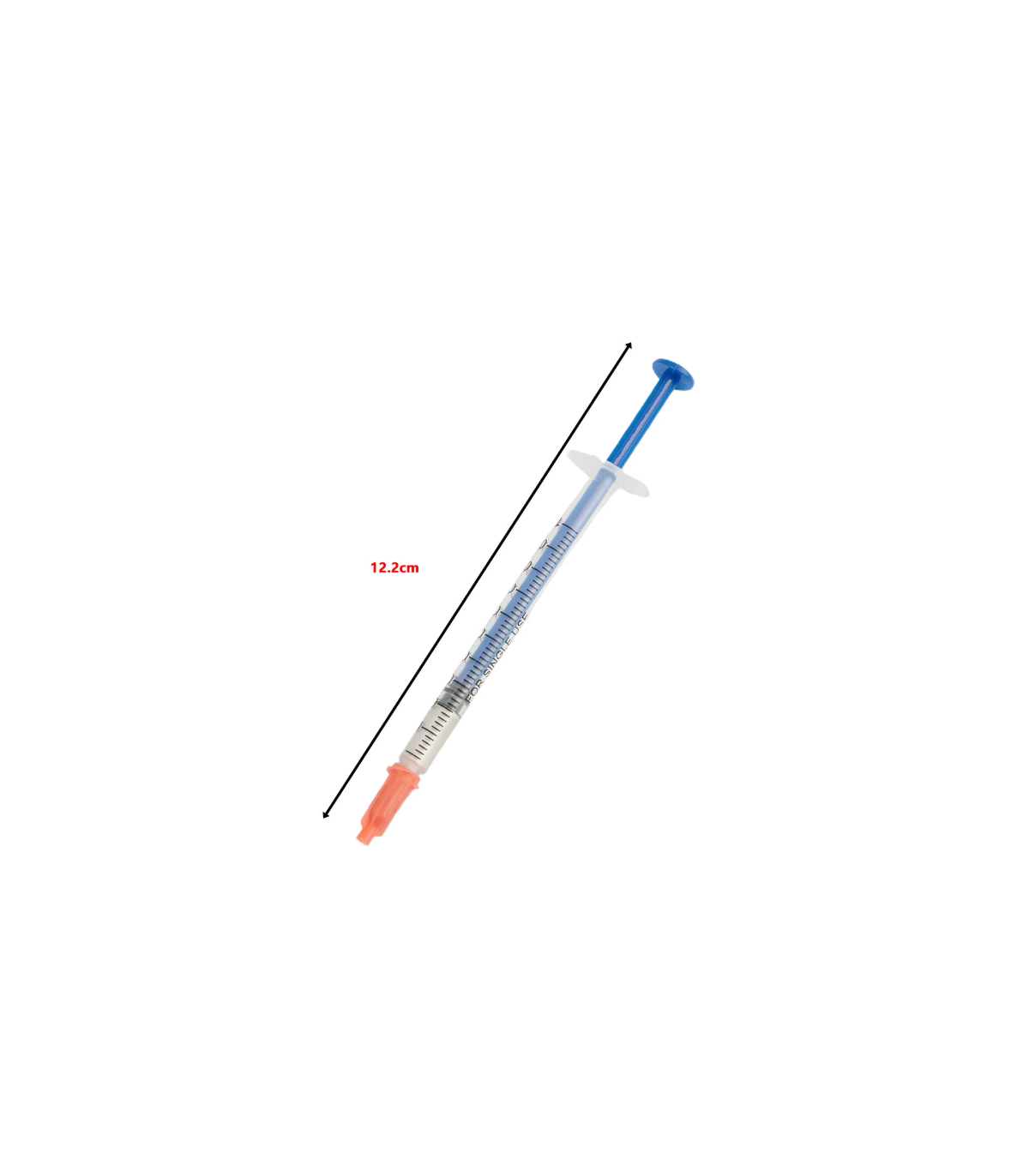

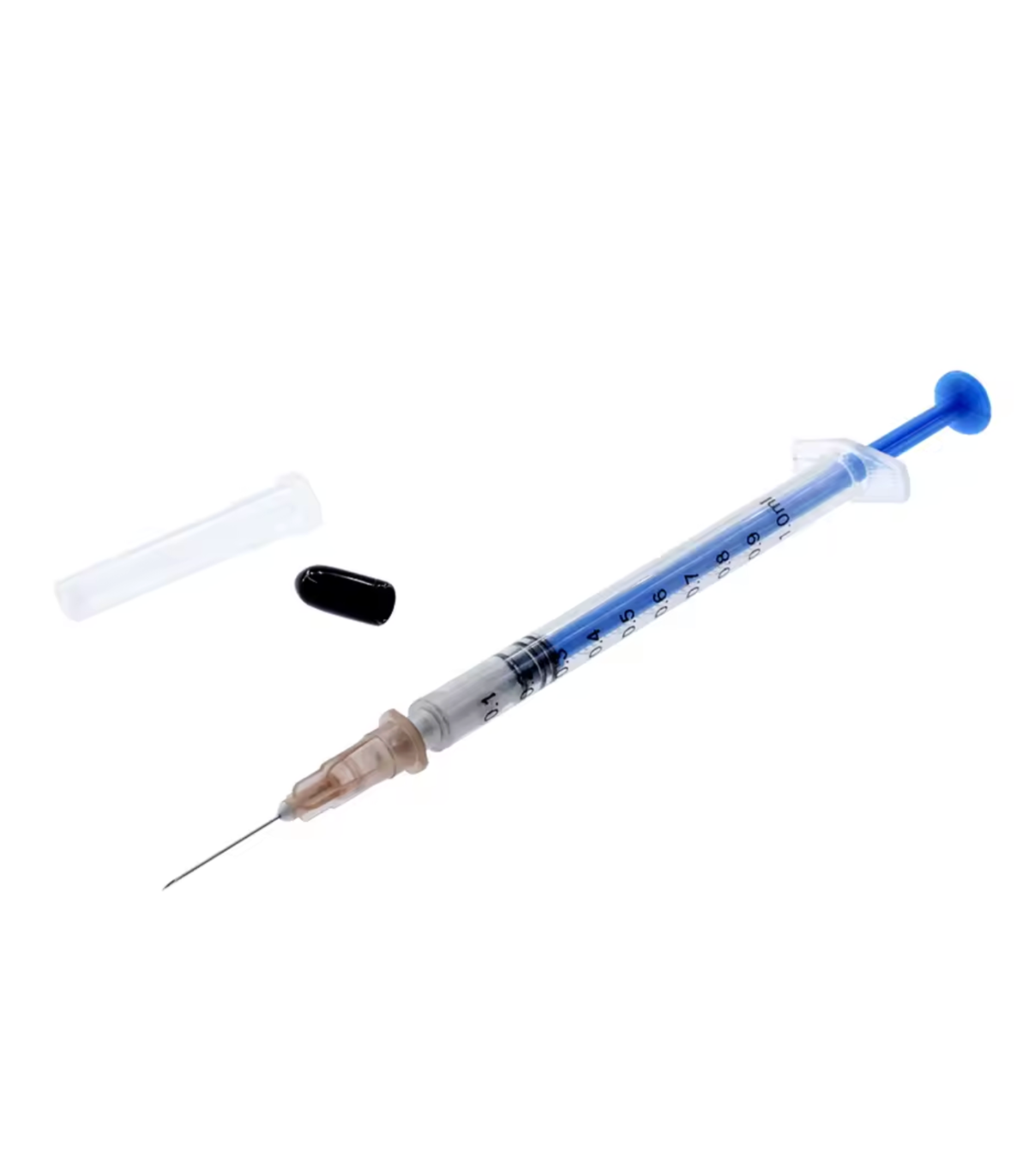

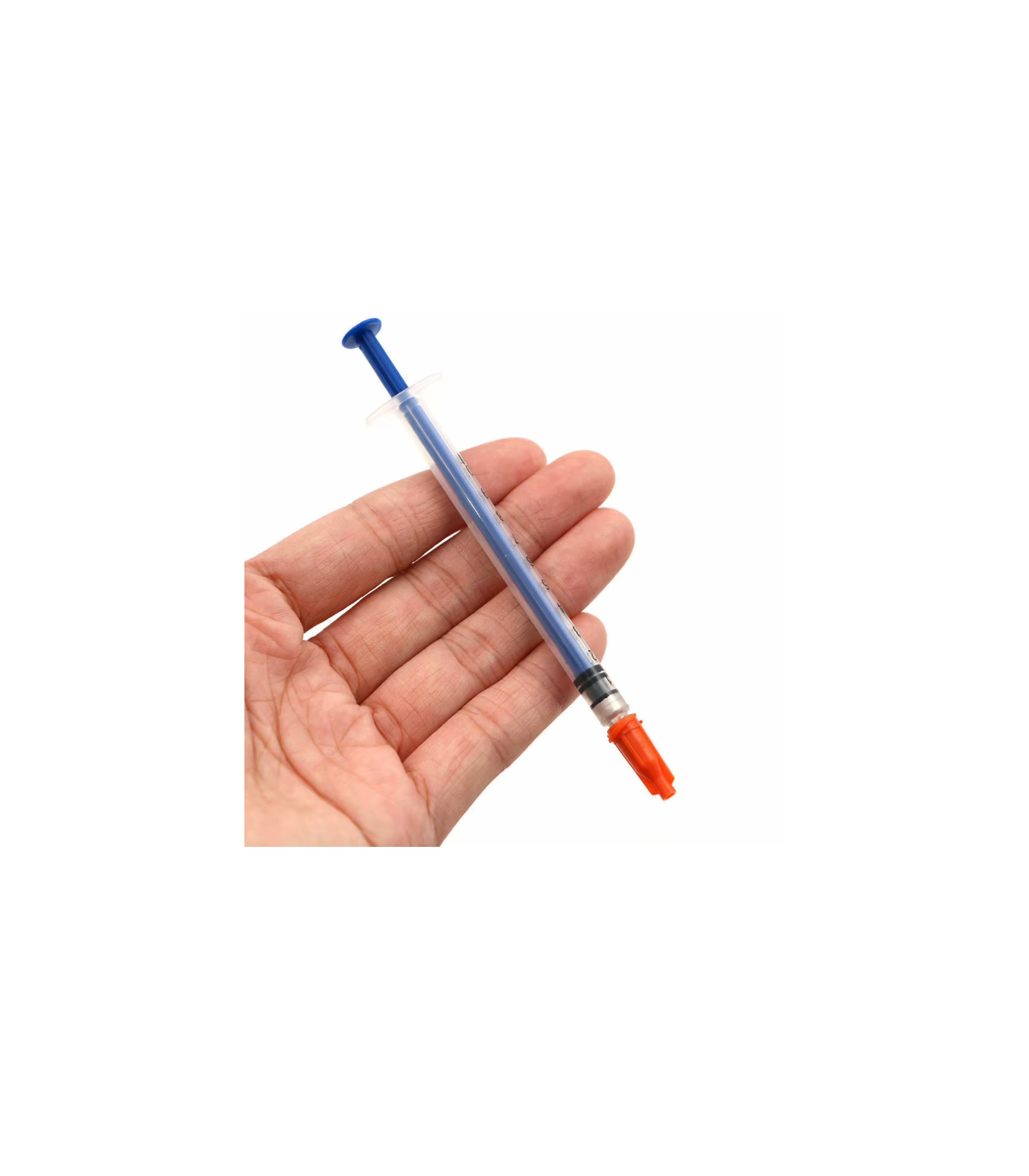

Brand New 0.2ML of silver paste in a syringe.
Soldering Iron in a Syringe!
The solution when you can't find the soldering iron, don't want to bother or your out in the woods!
This silver adhesive conducts low voltage AC and DC circuits in a permanent bond and is easy to use.
It's easy to use! no heat or solder gun required.
Great for for joining wires and repairing PCB's.

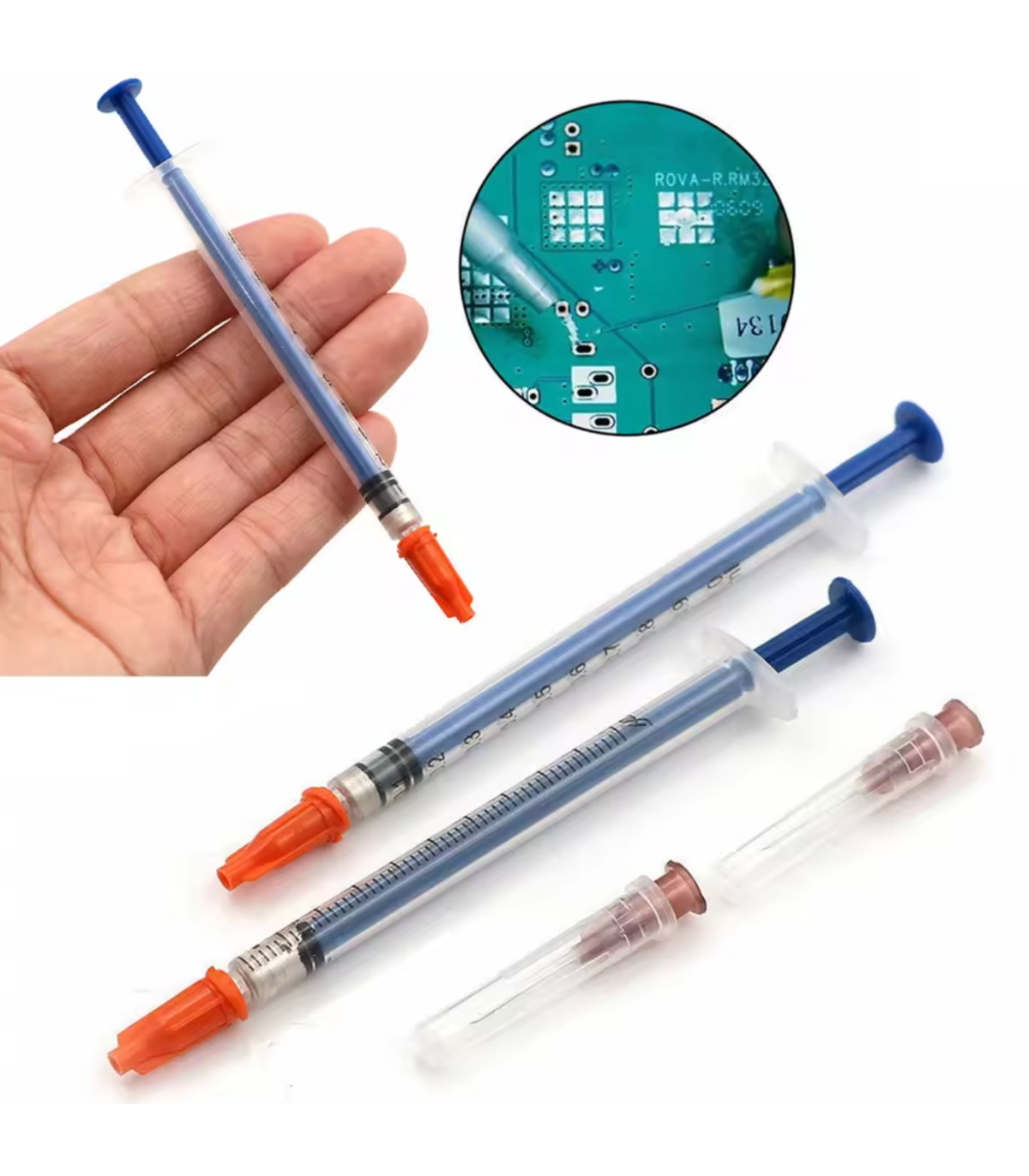

Repairing defect traces/tracks or creating smooth jumpers on PCB board.
It can be used for repairing membrane switches.
Perfect for both rigid & flexible substrates.
It's widely used in electrical items PCB circuit boards, CPU in computers, LED display, lcd display, controller, heat sink and LED etc. etc.
Silver Conductive 0.2ML Electrically paste Adhesive Paint PCB Repair
----------------------------------
Please note: Make sure the paste is warm at room temperature for it to flow correctly
It must be used thinly like solder and in warm conditions you can use something like a hair dryer to help speed up curing time.
If you apply really thick it will not cure properly so if it is needed thicker build it up in layers.
---------------------------------
Specifications:
Solid powder 60-80% 1) Has excellent electromagnetic shielding effectiveness.
2) Can be used for ABS, PC, ABS / PC plastic with excellent adhesion to the substrate.
3) 100% pure silver powder medium, with excellent conductive properties.
4) Excellent wear resistance.
5) Excellent moisture resistance.
6) Excellent drying time Approx. 20-60 mins. (depending on how warm conditions are)
(If you want to dry rapidly, blow with a hair dryer for 5 - 10 minutes)
Technical Data:
Weighting 25Degree 1.46-1.48g/cm3
Resistance <0.02 ohm="" sq="" film="" thickness="" of="" 12="" microns="" span="">
Viscosity> 20000CPS
Shielding effectiveness> 80dB
Recommended dry film thickness of 12-16 microns
Recommended Thinner Thinner ethanol
Dilution ratio conductive paint: thinner = 1:0.7-0.8 (weight ratio)
Humidity environmental test 85 Degree / 85% RH constant resistance value after 7 days
Dry conditions 60 Degree 20 min (you can use a hair dryer or heat gun heat cure faster)
Note: --
Recommend put the syringe in warm water to dispense easier.
Mask the heater tracks using tape.
Apply by dabbing and carefully remove masking tape immediately and then leave for a day or more.
