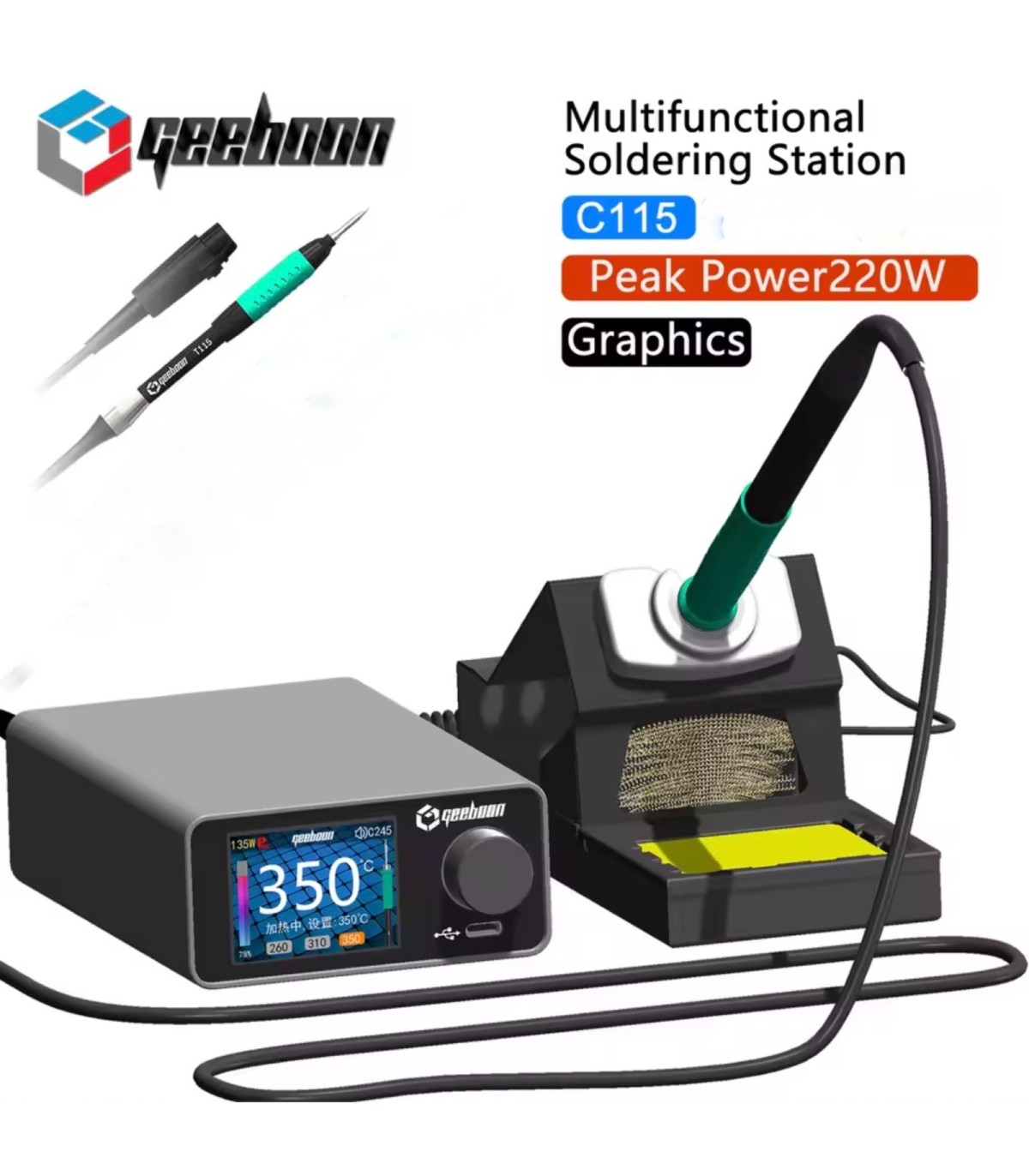

GEEBOON 240W TC22 soldering solder station C115 kit with Chisel tip and stand

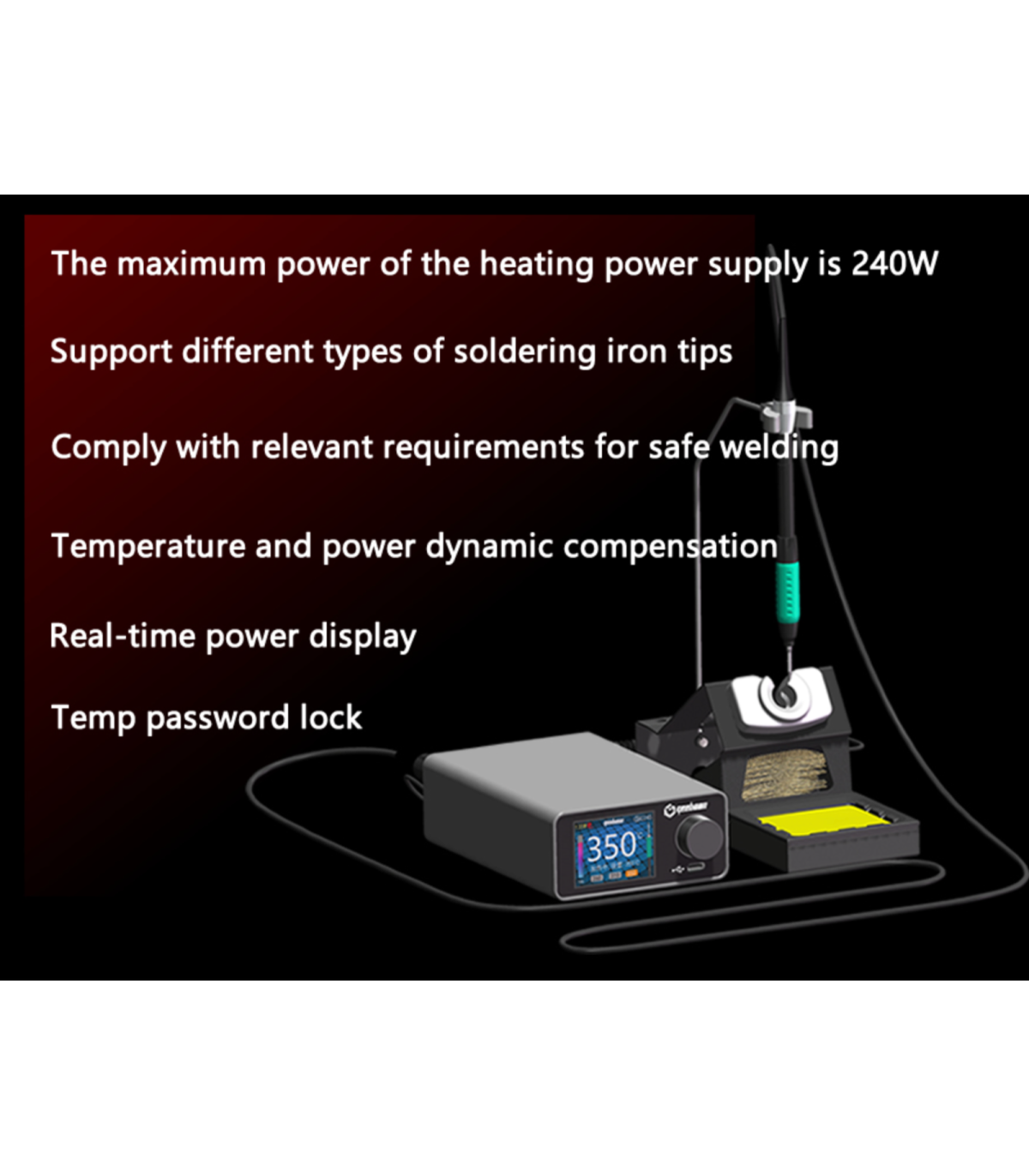

The GEEBOON 240W TC22 Soldering Solder Station C115 Kit with Chisel Tip and Stand is a digital soldering station designed for precision PCB repair, mobile phone motherboard soldering, IC work, and electronics rework. This GEEBOON TC22 240W soldering solder station C115 kit provides fast heating, stable temperature control, and intelligent operation for professional repair tasks.

With a 2.0-inch color display, PID temperature regulation, and advanced sleep functions, the GEEBOON 240W TC22 soldering station C115 kit delivers consistent soldering performance while helping extend soldering tip lifespan.

Key Features

• 240W High Power Output
  Ensures rapid heating and strong temperature recovery for continuous soldering work.

• Multi Heating Element Support
  Supports T12, C245, C115, and C210 heating elements (hardware dependent).

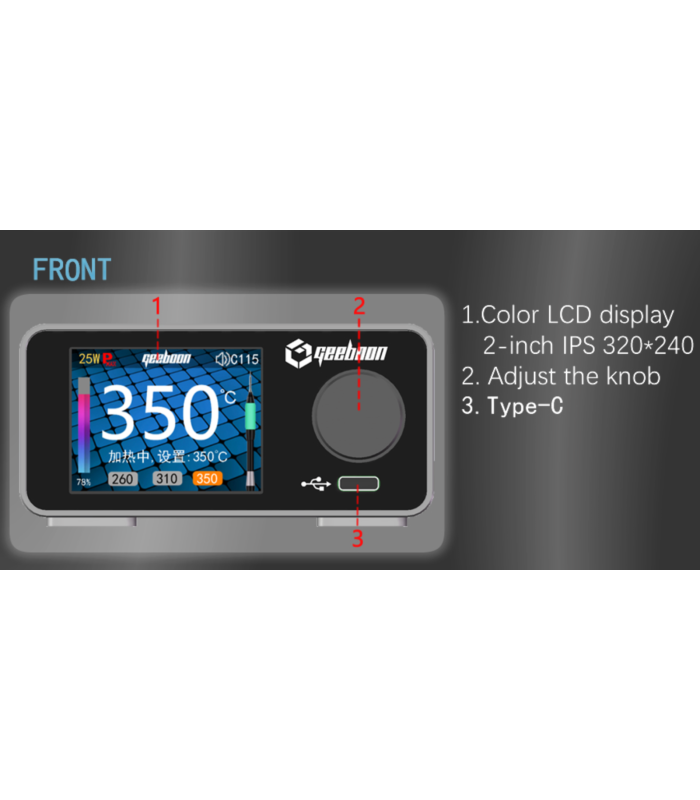

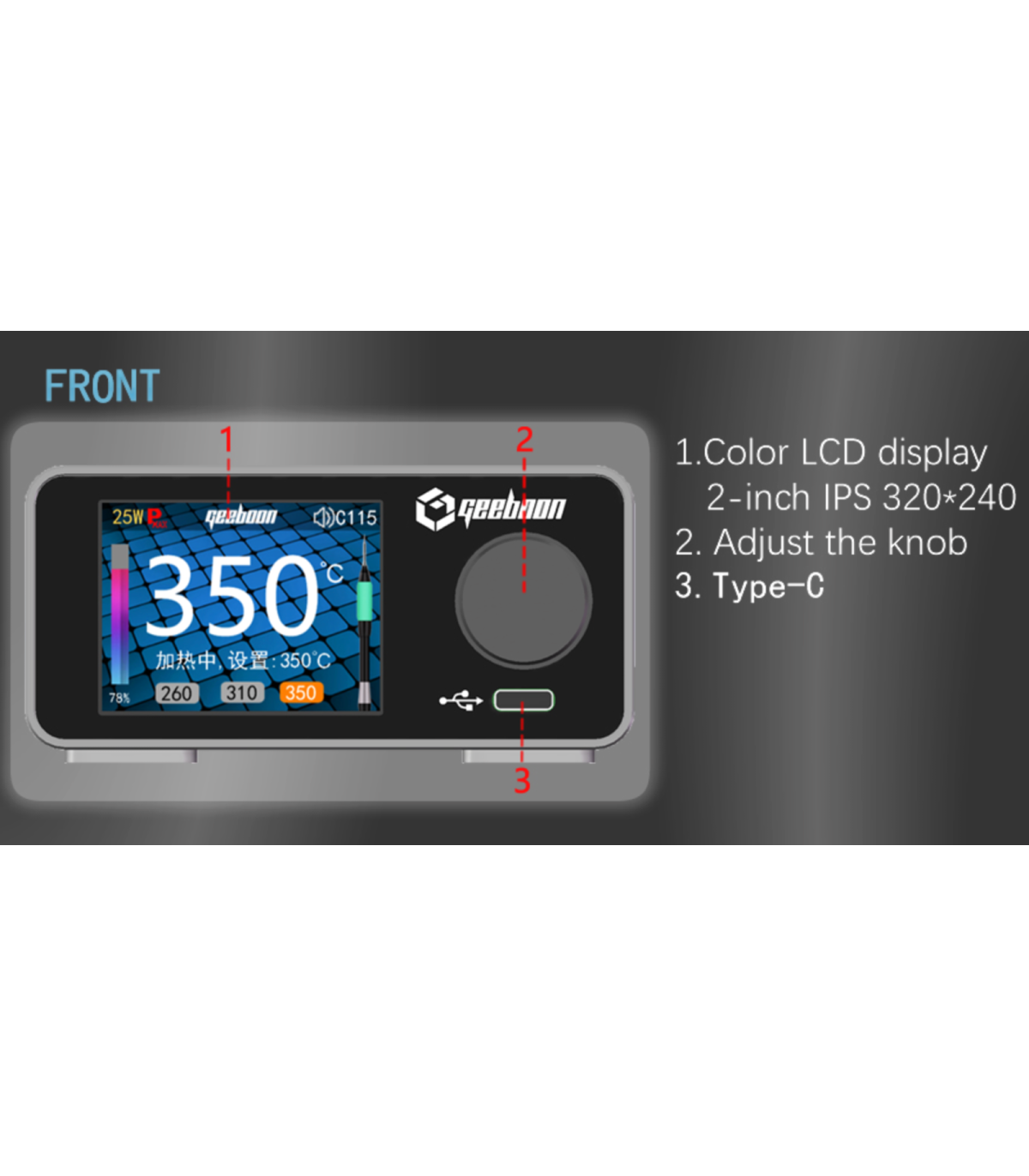

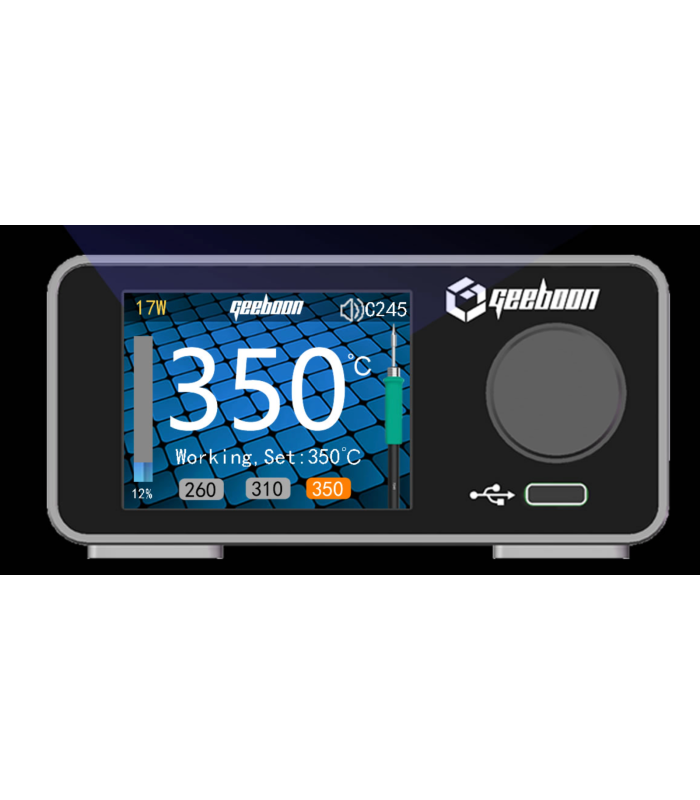

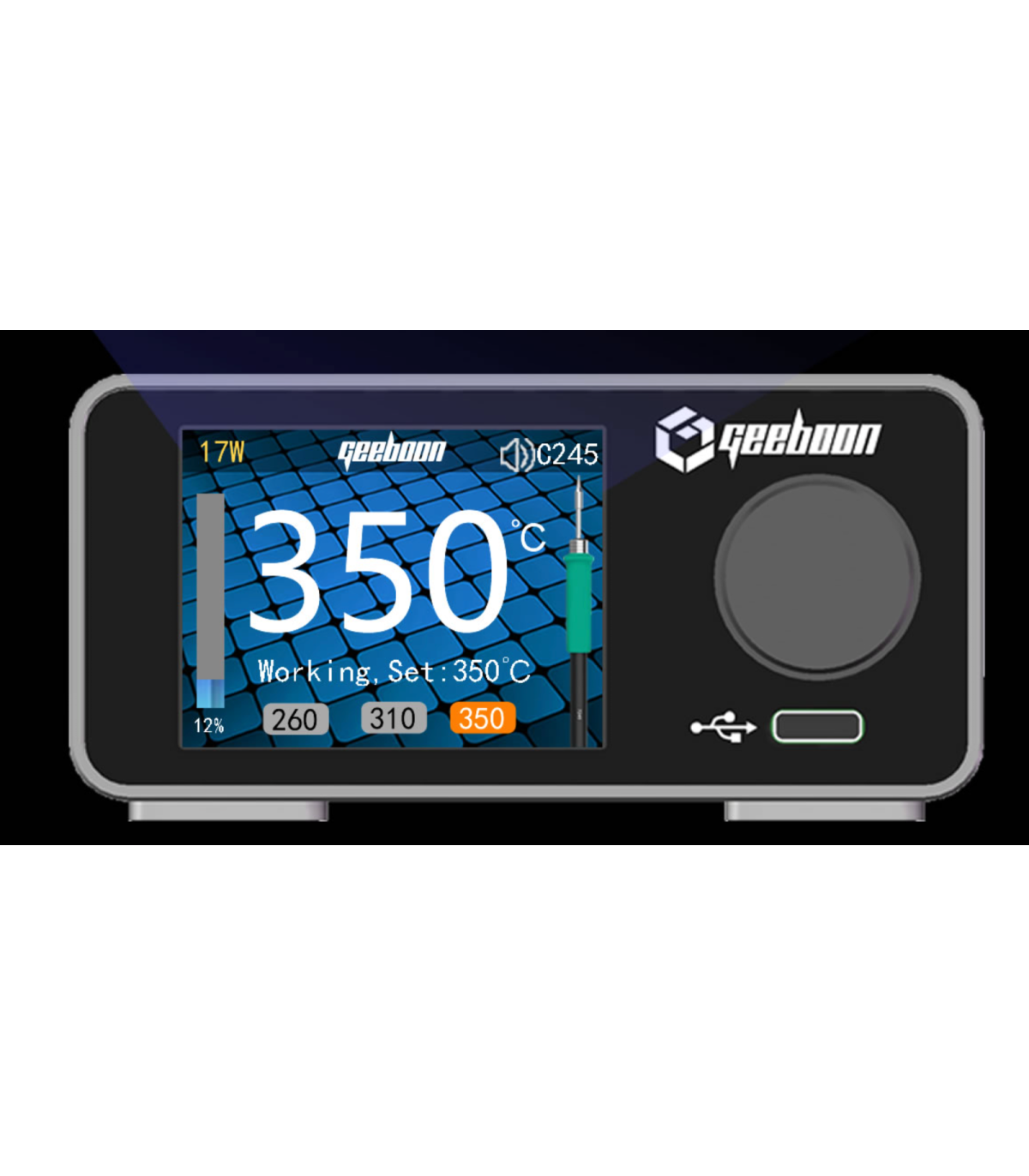

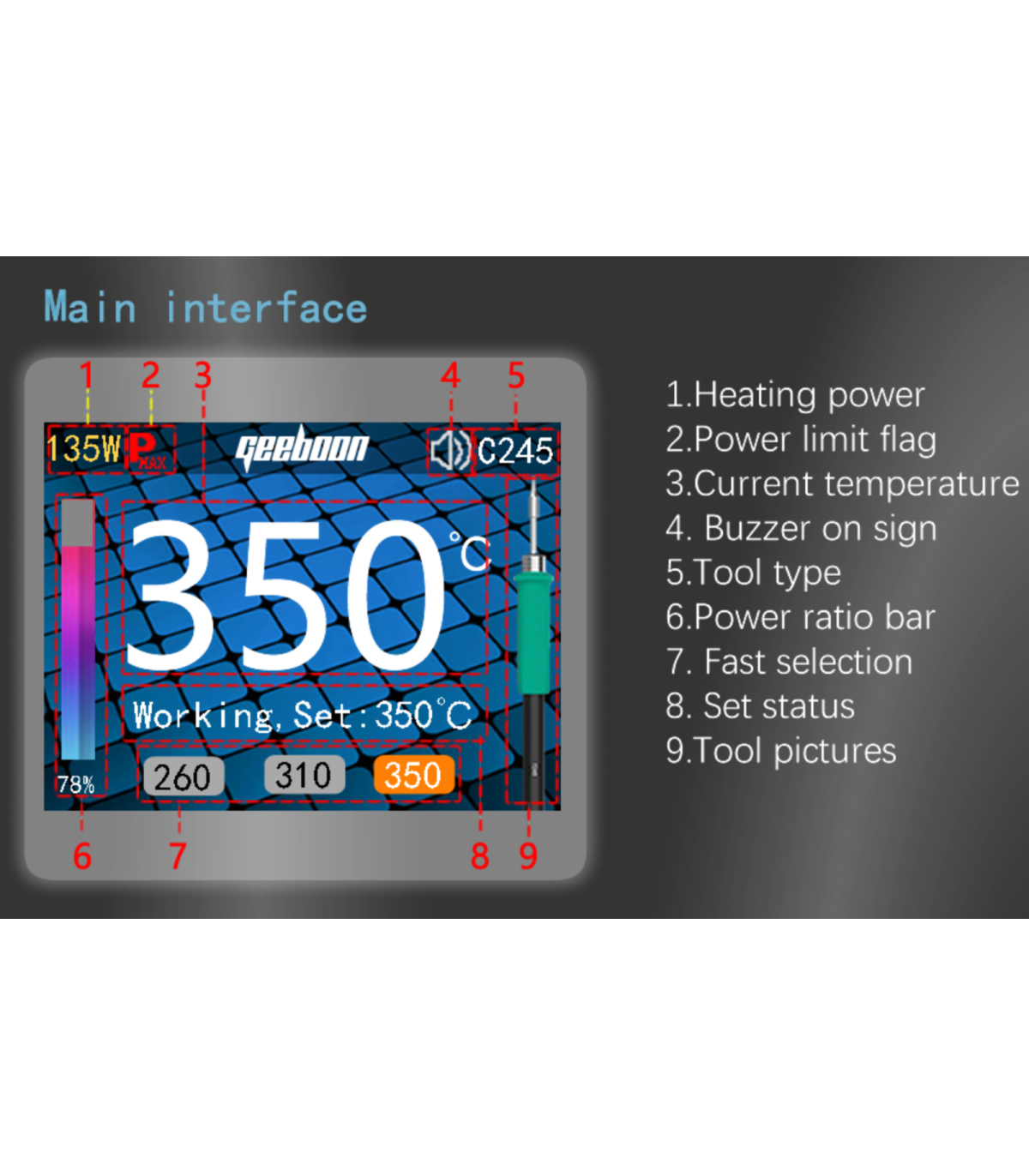

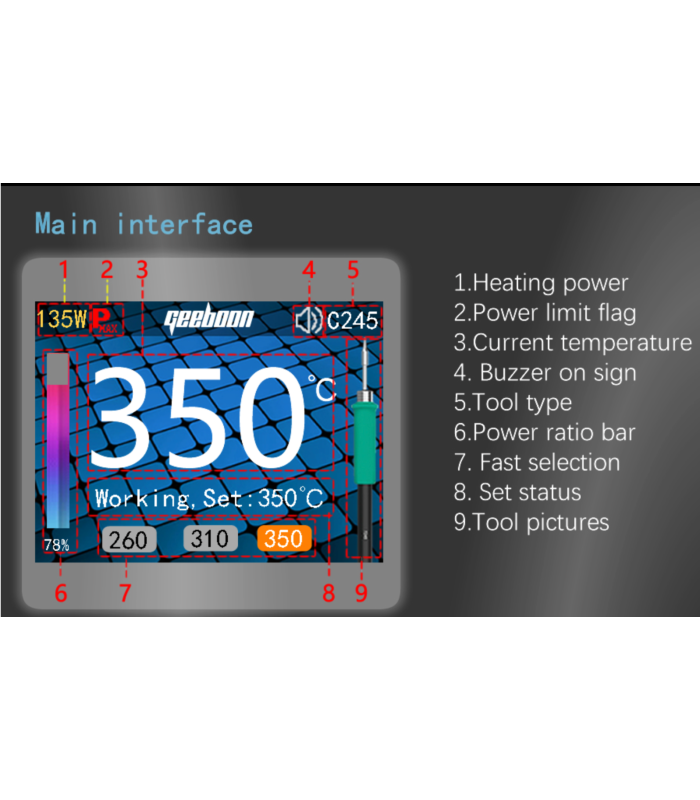

• Digital Color Display
  2.0-inch color screen (320 × 240) with adjustable temperature range 100℃–480℃.

• PID Temperature Control
  Maintains stable temperature with accuracy of ±1.5℃ after stabilization.

• Temperature Memory & Quick Presets
  Includes temperature memory and three-level rapid temperature settings.

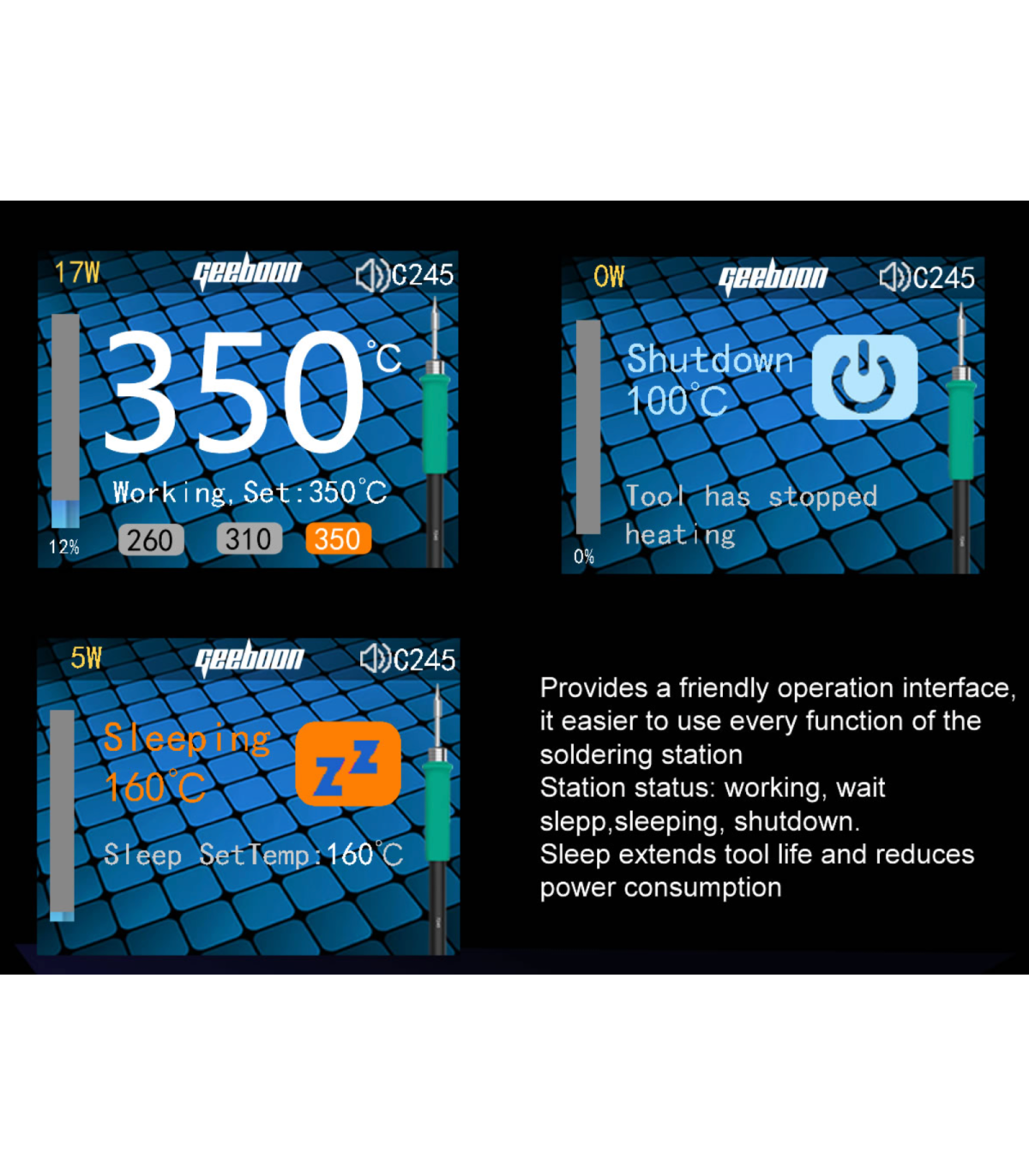

• Intelligent Sleep Modes

  • Sleep Stand Mode: Automatically enters sleep when the handle is placed on the stand (default 200℃).

  • Vibration Sensor Mode: Enters sleep after 2 minutes of inactivity.

• Stop Function
  Heating stops after a set time and resumes operation with a single press of the control knob.

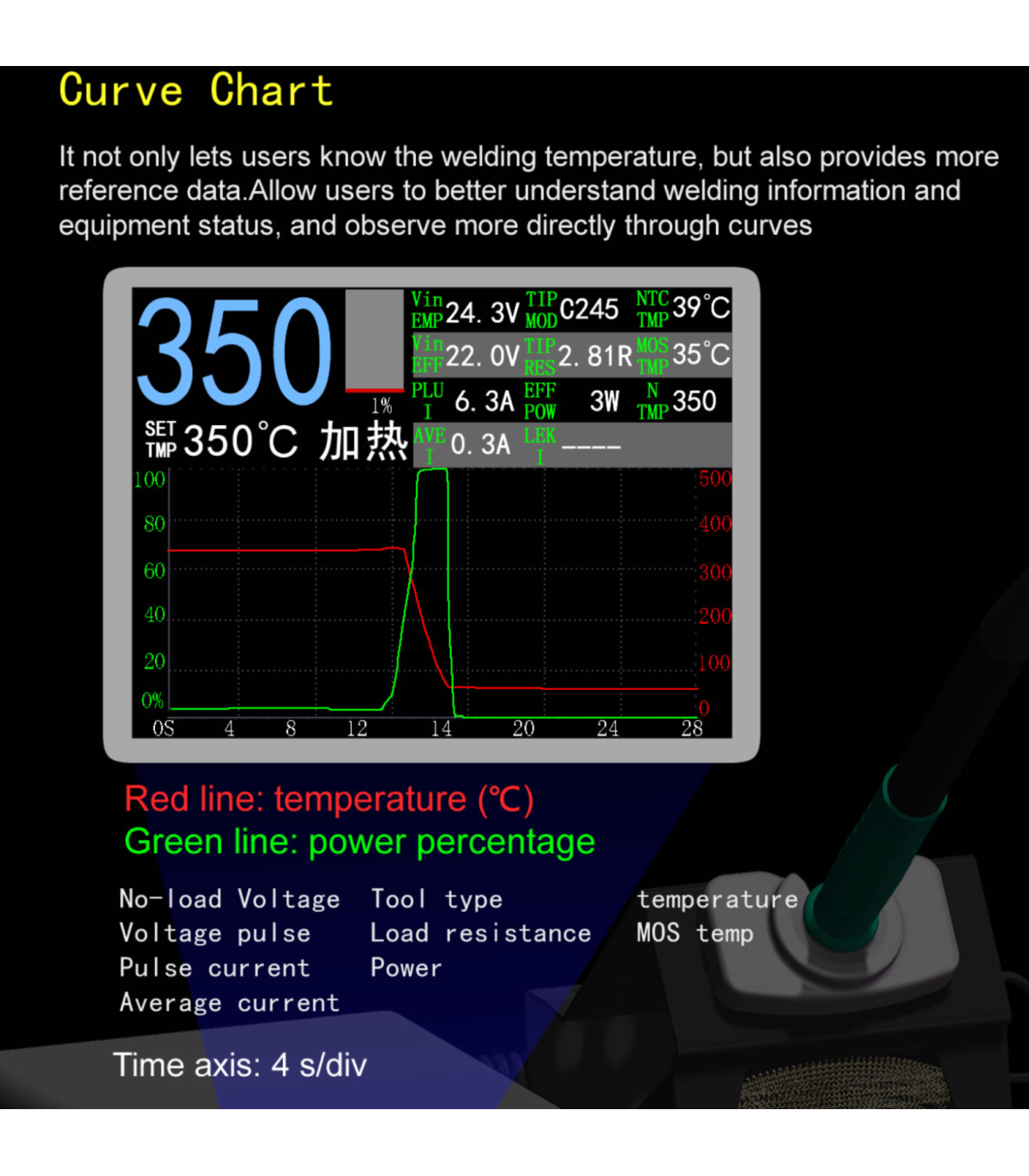

• Real-Time Temperature Curve Display
  Displays live temperature and output status relationship.

• Upgradeable Software
  Firmware can be updated to add new functions and performance improvements.

Applications

• Mobile phone motherboard repair

• PCB and IC soldering

• Electronics rework and maintenance

• Professional repair workshops and service centres

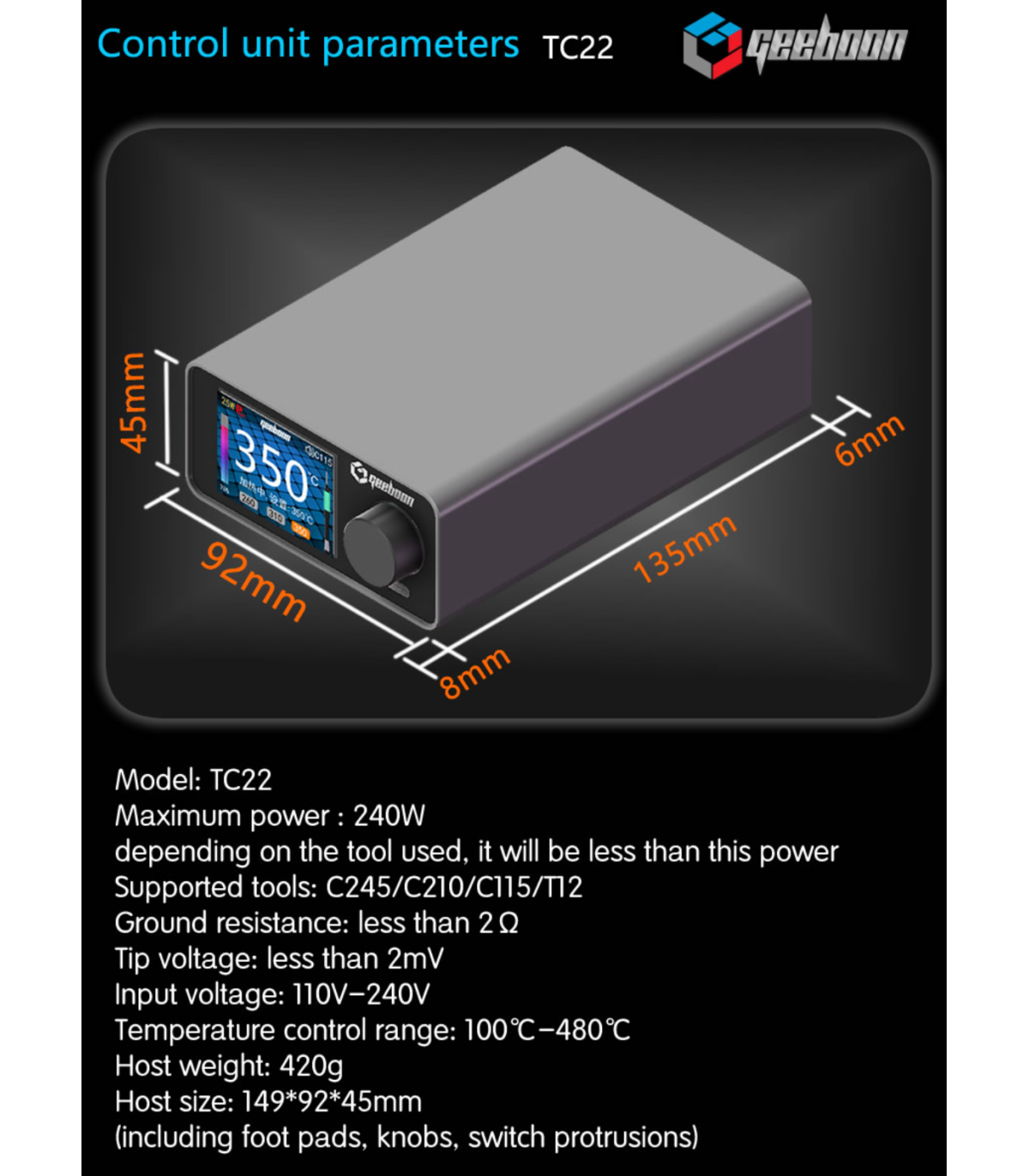

Specifications

• Brand: GEEBOON

• Model: TC22

• Power: 240W

• Display: 2.0-inch Color Screen (320 × 240)

• Temperature Range: 100℃ – 480℃

• Temperature Control: PID

• Heating Element Support: T12 / C245 / C115 / C210 (model dependent)

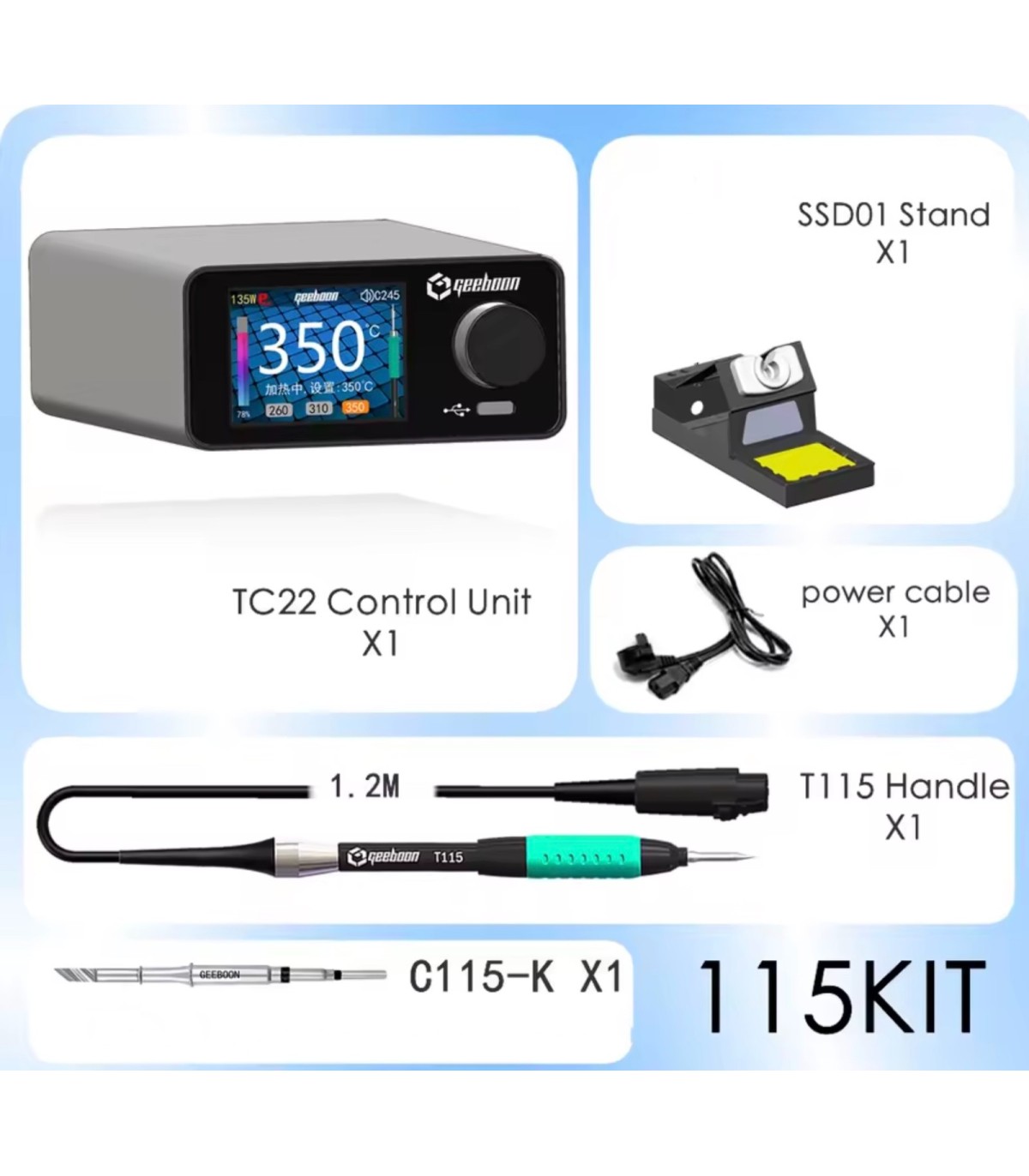

Package Includes

• 1 × GEEBOON TC22 240W Soldering Station Host

• 1 × C115 Soldering Handle

• 1 × Chisel Tip

• 1 × Soldering Iron Stand
