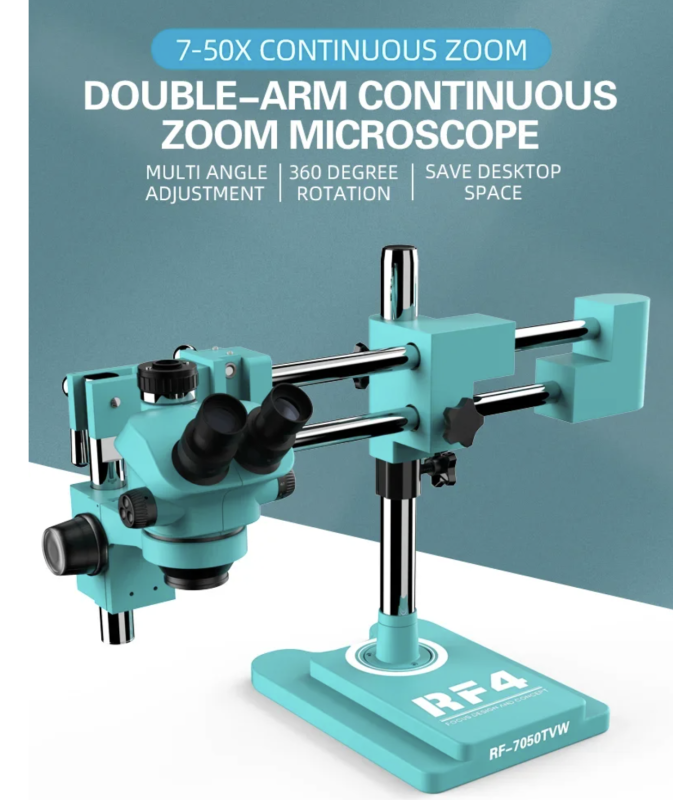

RF4 RF7050TVW Trinocular Stereo Continuous Zoom Industrial Boom Microscope

The RF4 RF7050TVW Trinocular Stereo Continuous Zoom Microscope is a high-quality industrial microscope designed for detailed inspection and repair work. With its trinocular head, it supports both viewing and camera integration for video recording and analysis. The continuous zoom function delivers clear magnification, while the sturdy boom stand provides flexibility and stability.

Features:
Condition: Brand New
Model: RF7050TVW
Type: Trinocular Stereo Microscope

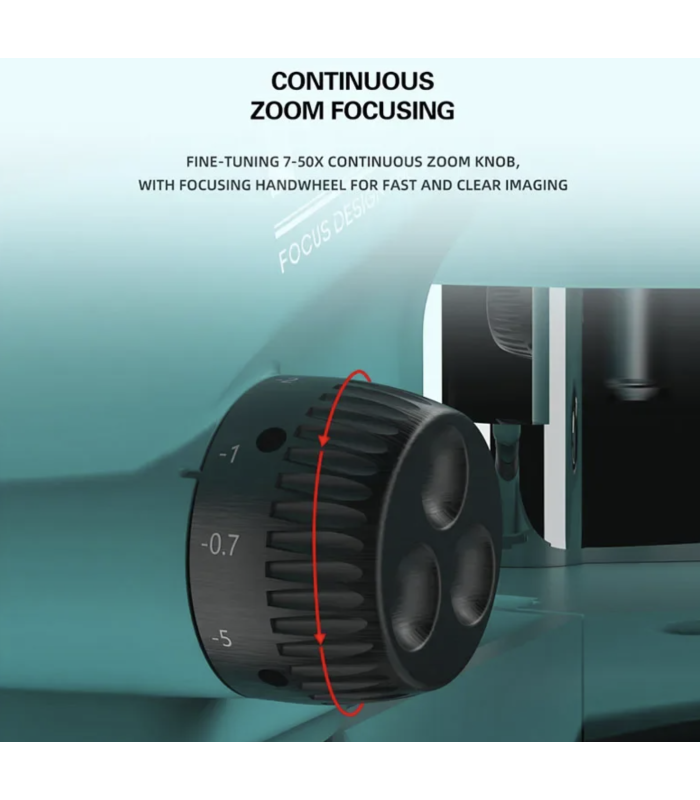

Zoom Range: Continuous Zoom 7X – 50X
Stand: Industrial boom stand for stability and flexibility
Application: Suitable for electronics repair, soldering, PCB inspection, jewelry, and fine-detail tasks

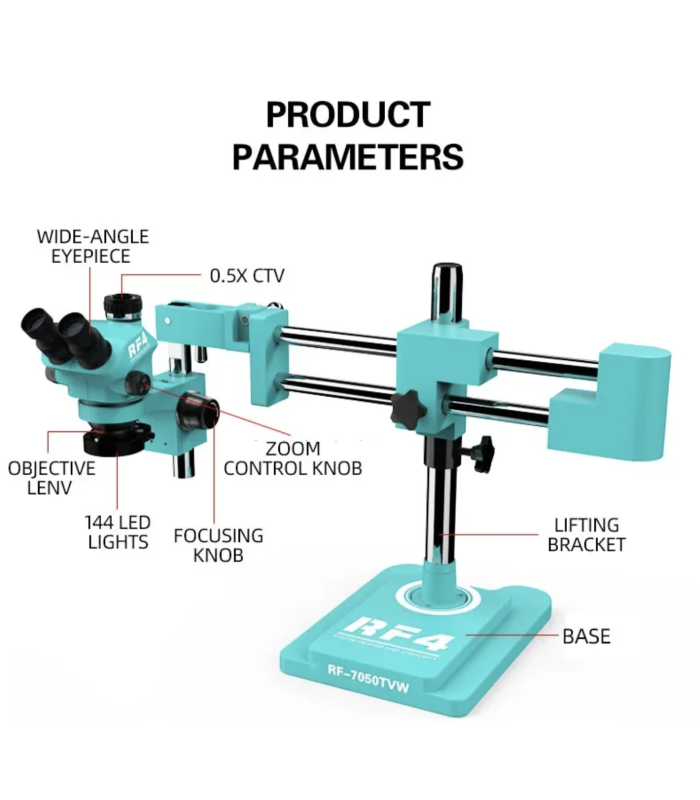

Technical Specification

• Brand: RF4

• Model: RF7050TVW

• Microscope Type: Trinocular Stereo Continuous Zoom Industrial Microscope

• Magnification Range: 7X – 50X continuous zoom

• Zoom Ratio: 6.4:1

• Eyepieces: WF10X / 20mm widefield high-eye-point

• Objective Lens: 0.7X – 5.0X zoom objective

• Head Type: Trinocular, 45° inclined, 360° rotatable

• Trinocular Port: Standard C-Mount (compatible with hdmi / USB cameras)

• Interpupillary Distance: 54 – 76mm adjustable

• Diopter Adjustment: ±5 diopter on both eyepieces

• Working Distance: 100mm standard (extendable with auxiliary lens 0.5X / 2.0X)

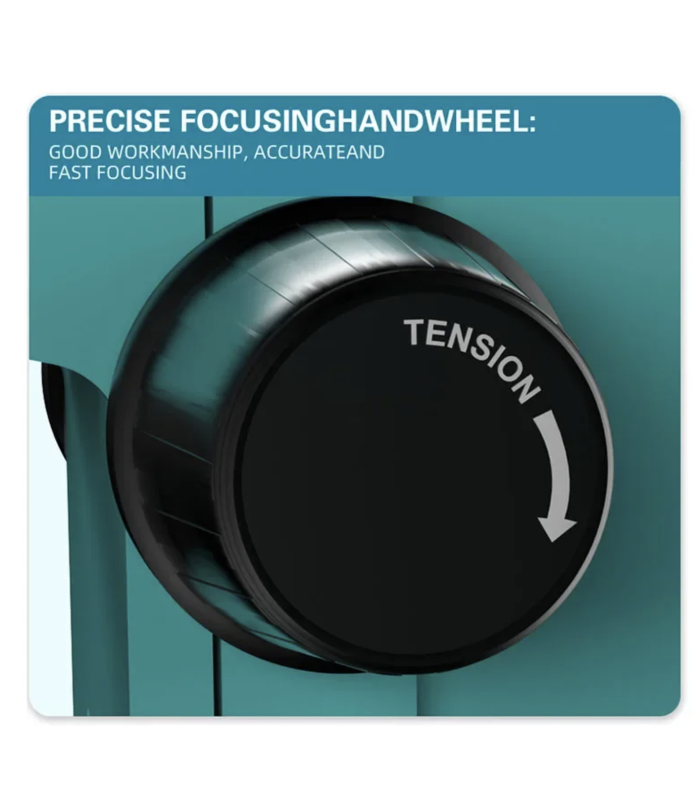

• Focus Mechanism: Rack and pinion focusing system with tension control

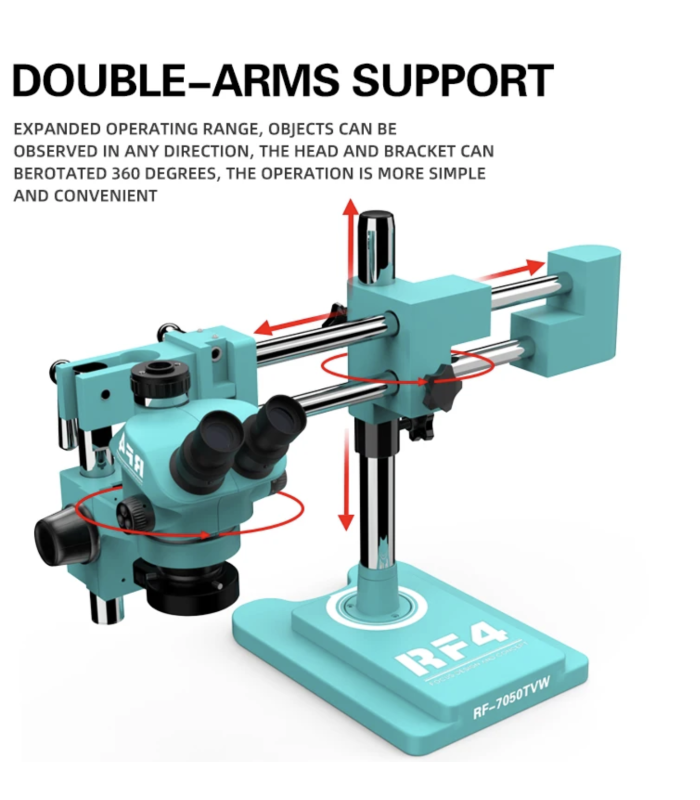

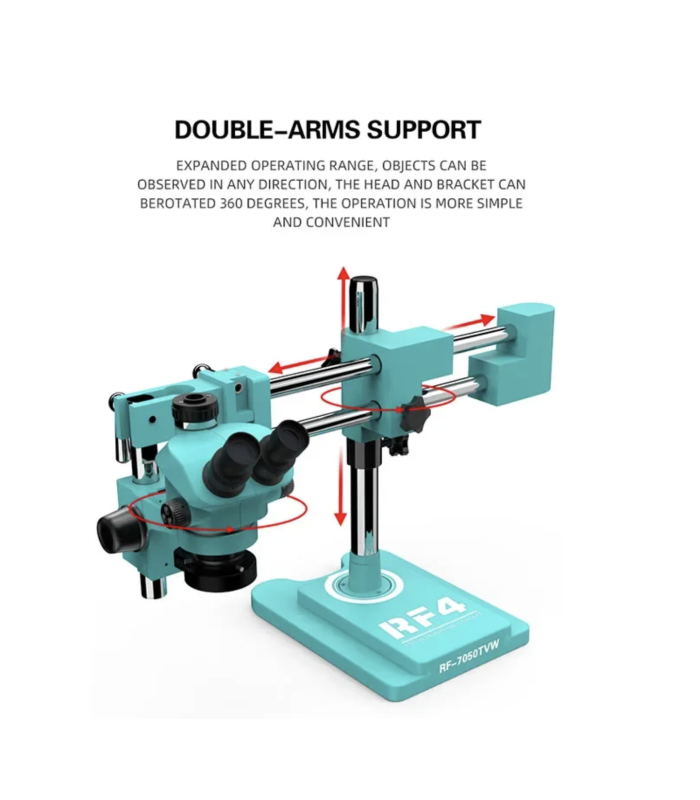

• Stand Type: Industrial dual-arm boom stand with 360° rotation

• Base Dimensions: Approx. 380mm × 260mm

• Horizontal Arm Length: Approx. 420mm

• Vertical Post Height: Approx. 380mm

• Illumination: Supports external LED ring light or fiber optic lighting (optional)

• Mount Diameter: 76mm microscope head holder

• Field of View: 4.4mm – 31.4mm (depending on magnification)

• Material: Heavy-duty all-metal construction

• Finish: Anti-static, corrosion-resistant coating

• Color: White / Black

• Net Weight: Approx. 13.5 kg

• Application: Ideal for electronics repair, PCB inspection, micro-soldering, and precision optical testing

Package Includes:
1 × RF4 RF7050TVW Trinocular Stereo Continuous Zoom Industrial Boom Microscope
