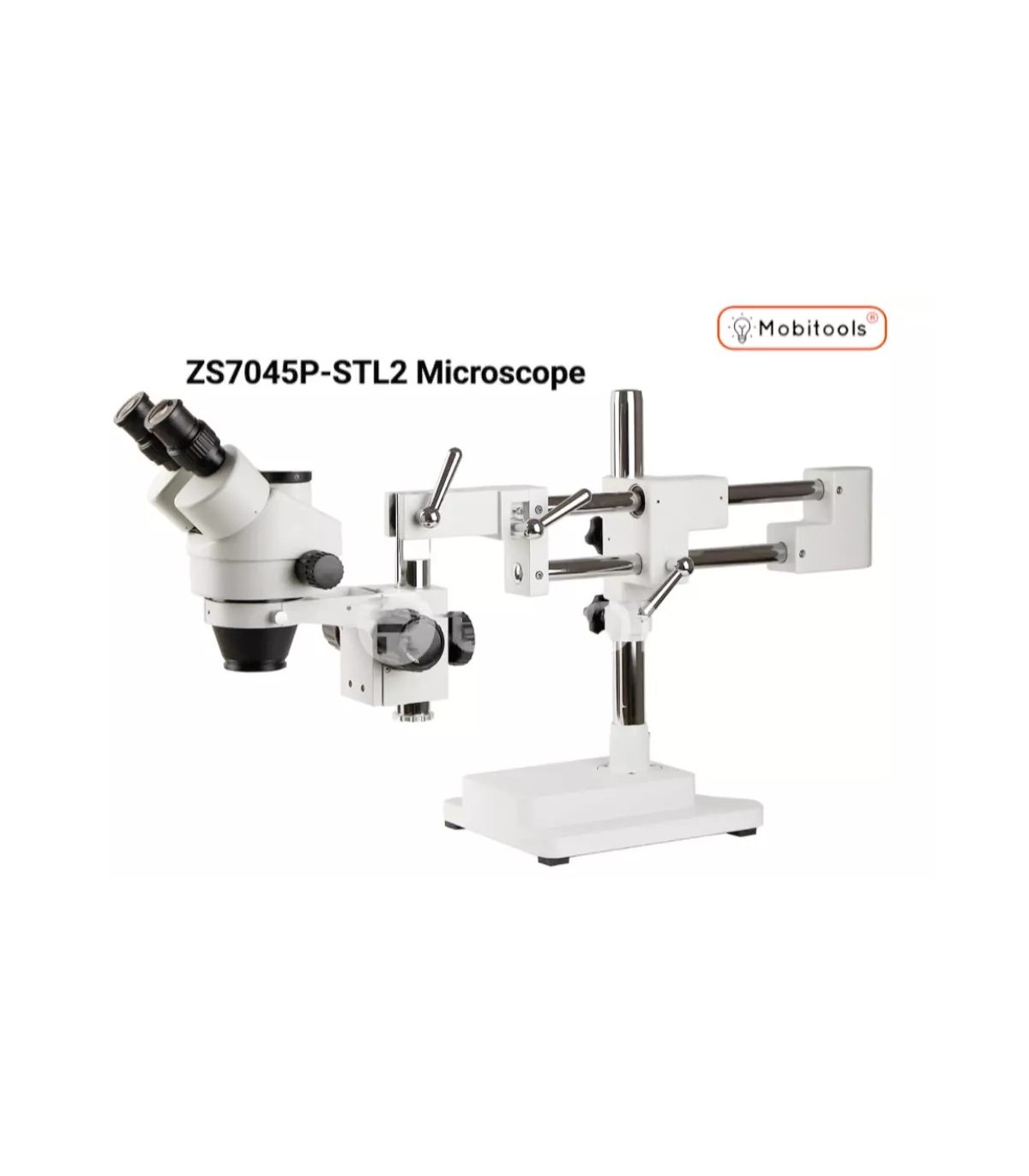

Boom 7-50X Dual Arm Stereo Microscope ZSM7045-STL2 with LED light barlow lens

Observation head

45°decline, 360°rotate, Pupil distance 54---76mm; Bilateral visual adjustment ±5

Double-Arm Boom Trinocular Stereo Microsclpe

Eyepiece

Standard WF10X20, High angle wide angle eyepiece, provide convenience for observers wearing glasses

Optional eyepiece

WF10X20mm，WF15X15mm，WF20X10mm，WF25X9mm，WF30X8mm

Magnification

Standard 7X---45X, Optional and auxiliary lenses can be extended to 2.1X---270X, Continuous doubling

Objective

0.7X---4.5X Zoom Range, objective magnification ratio 1：6.4, Ensure image alignment

Auxiliary Lens

0.3X，0.5X，0.7X，1X，1.5X，2X  For option

Working Distance

100mm

Focus arm

76mm Diameter, 32mm pole size

Base

STL2 Universal Bracket with Two Arms,

Illumination

Optional

Plate

White plate
