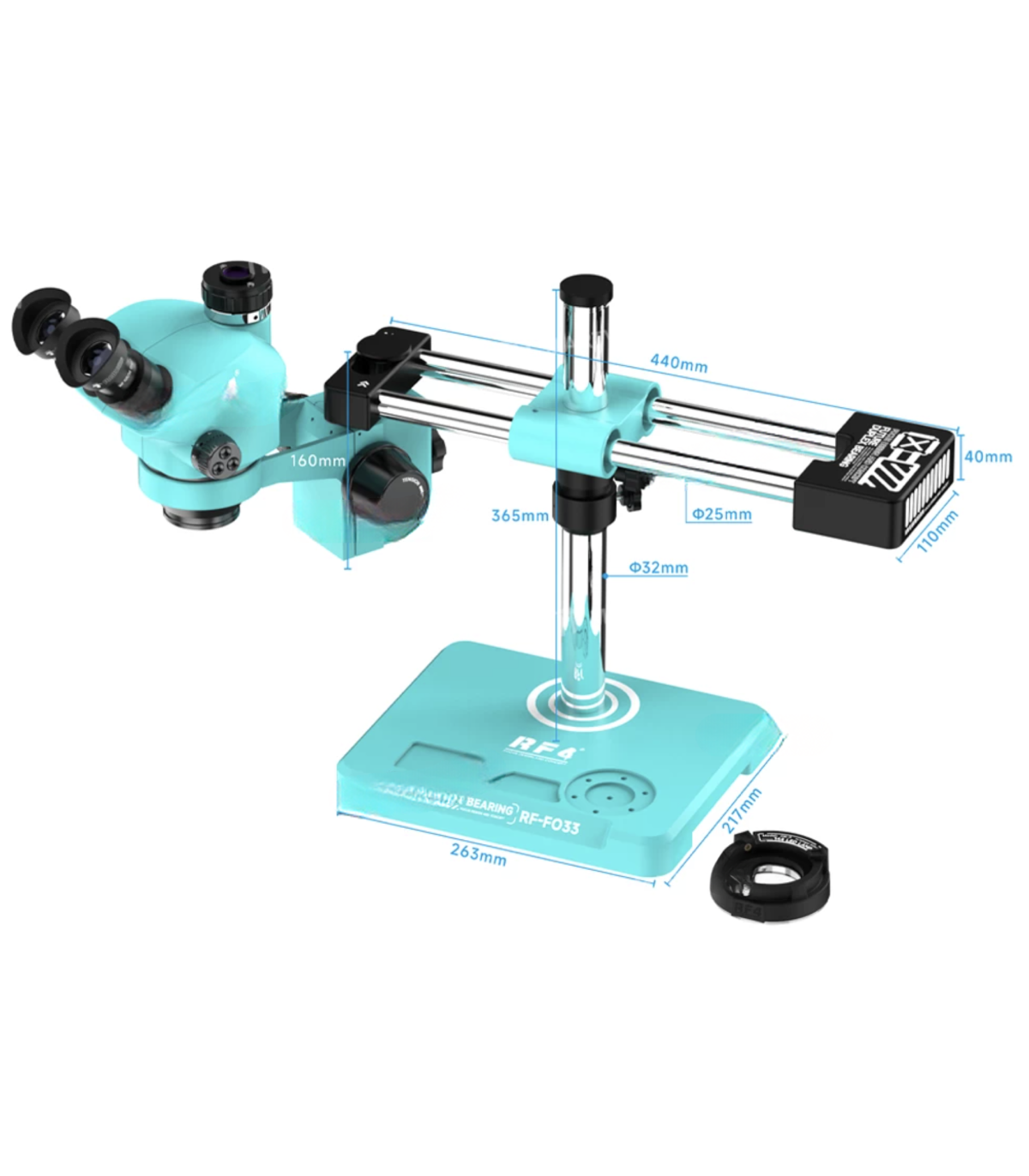

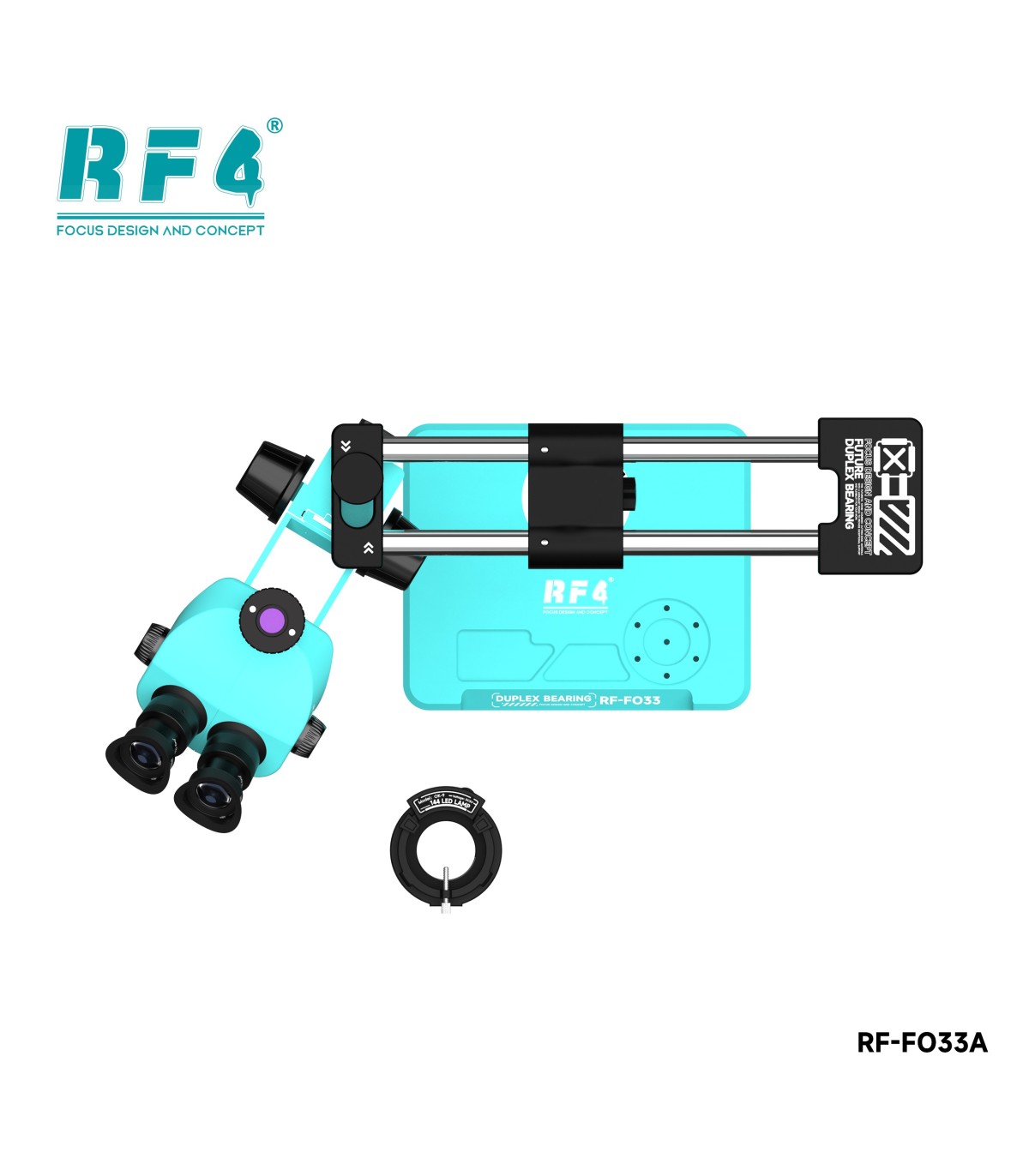

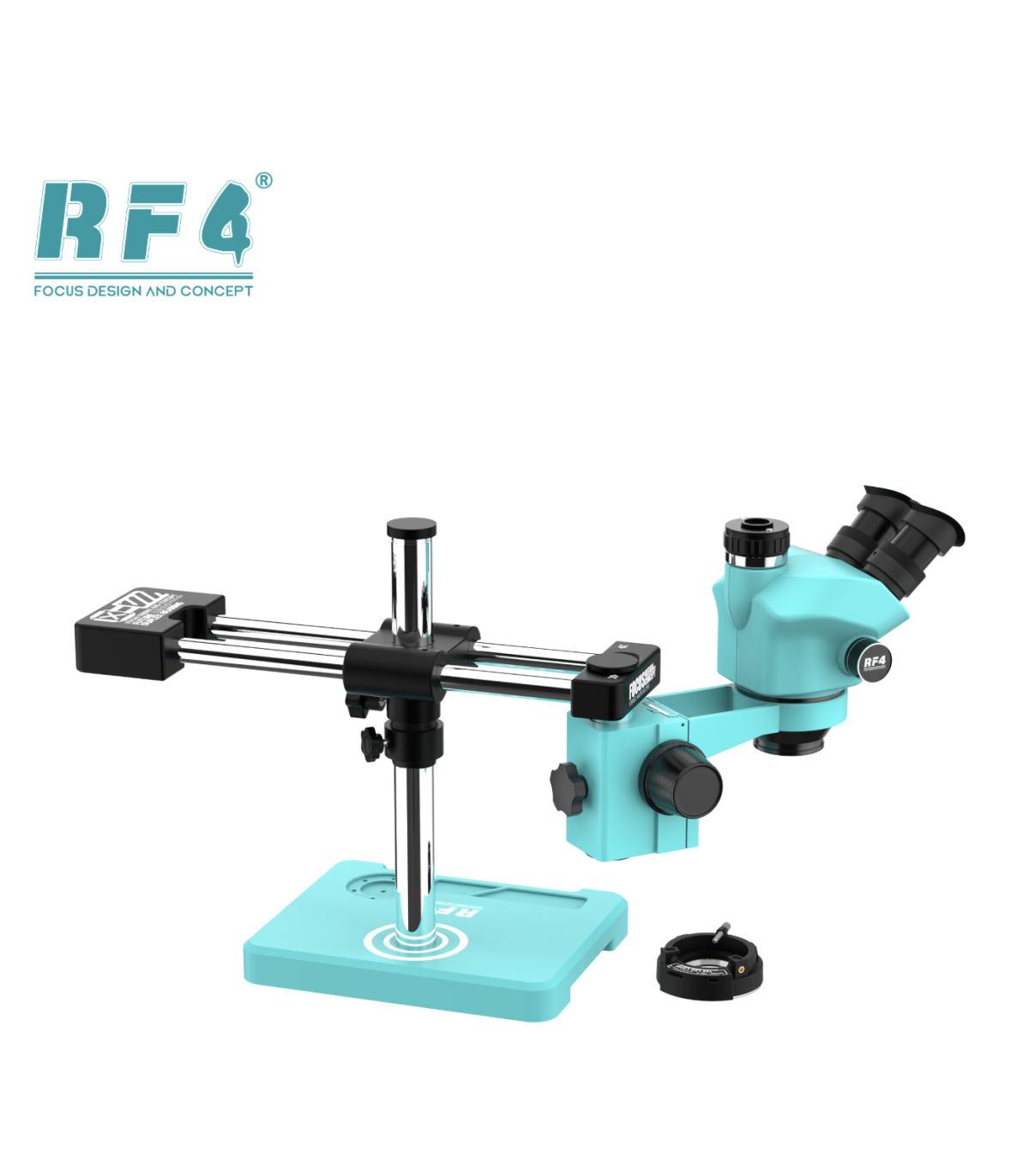

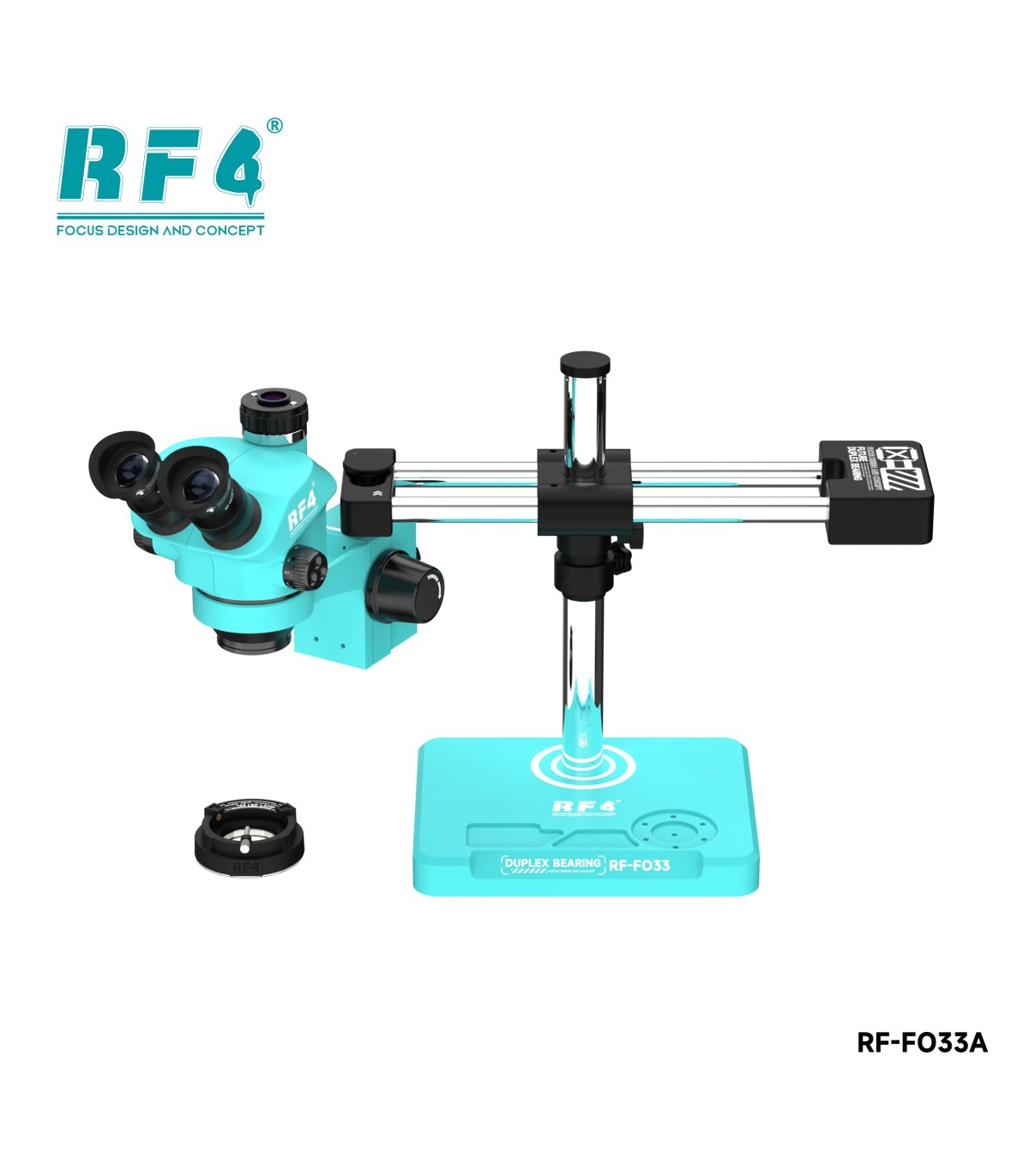

RF4 RF-FO33A 7050TV 7-50X Synchronous Zoom Trinocular Stereo Boom Microscope

RF4 RF-FO33A (7050TV) 7-50X Synchronous Zoom Trinocular Stereo Microscope with Large Double Arm Base

Features:

• The RF-FO33 adopts a newly designed large double-armed base, and the superior stability of its swing arm and base ensures that the microscope will not be shaken by operation

Specification:

• Magnification: Continuous zoom 7X to 50X
• Head: 45-degree inclined 360-degree swiveling trinocular
• Eyepiece: WF10X/22MM
• Objective: 0.7~5.0X
• Camera connector: 0.5X
• Monitor and eyepiece: Synchronous zoom
• Accessories: 144 adjustable LED lights & dust proof Lens

Support Parameters:

• Column aperture: Φ32mm
• Lens aperture: Φ76mm
• Center distance: 155mm
• Lifting range: 50mm

Base Parameters:

• Base size: 250*180mm
• Pillar: 365mm * φ32mm

Wide-angle Eyepieces 10X/22:

• Magnification: 10X
• Wide field of view 22mm
• Matching size: 30mm
• Applicable models: Stereoscopic, fixed, and continuous magnification microscopes

0.48X CTV Len:

• The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
• The adapter ring can use LCD to focus, this kind of focus method is manual focus
• The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

144 LED Ring Light:

• Input: AC 100~240V 50/60Hz
• Output: DC 12V, Max 700mA
• Light color: White
• Number of lights: 144 LEDs
• Inside diameter: 60mm

Package includes:

• 1 x Microscope
• 1 x Large Double Arm
• 1 x 144 LED Light
• 1 x Dustproof Len
• 1 x CTV Lens
• 1 x Column
• 1 x Base
