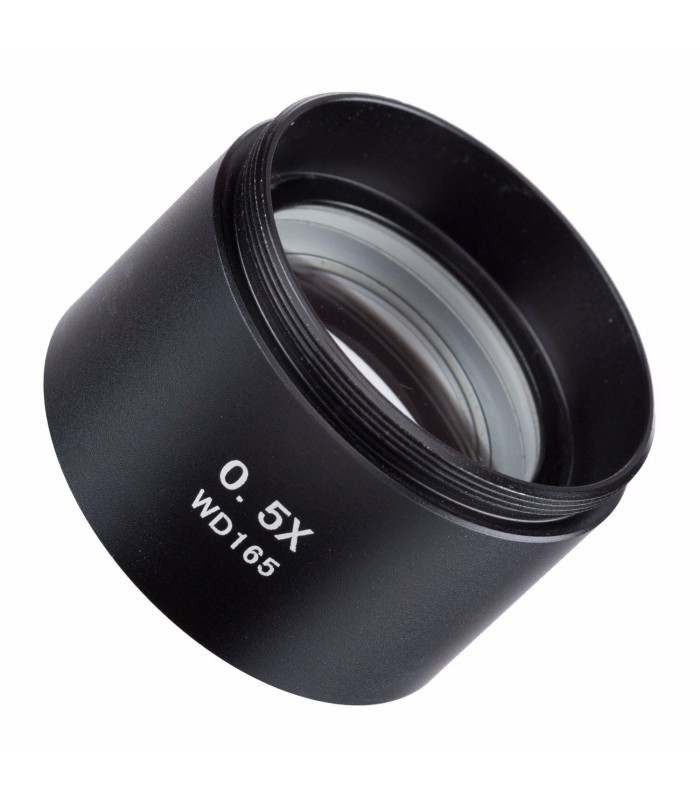

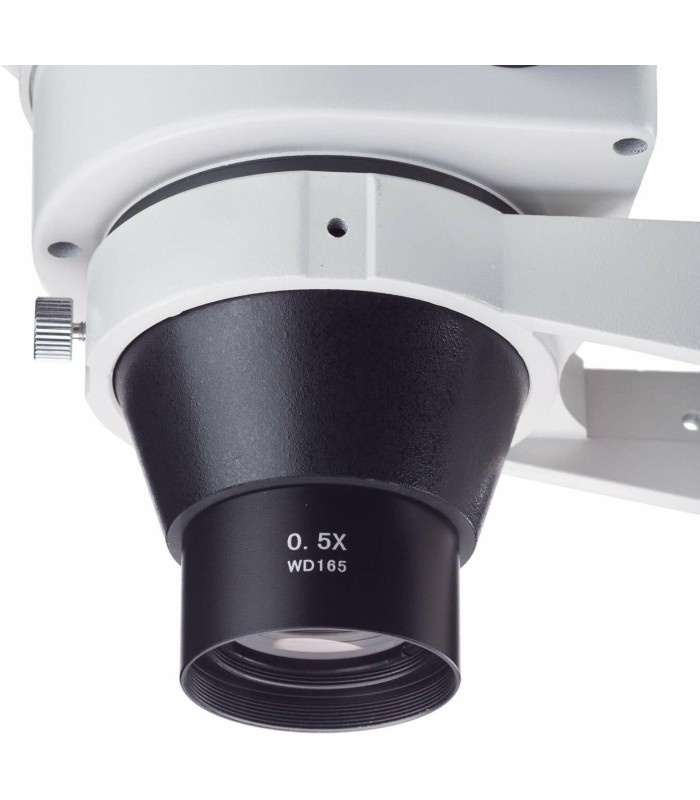

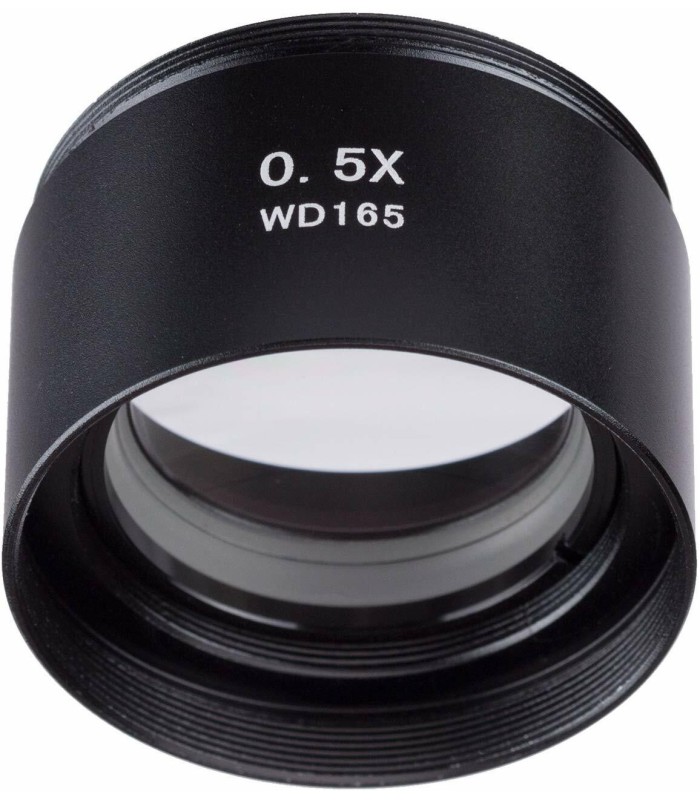

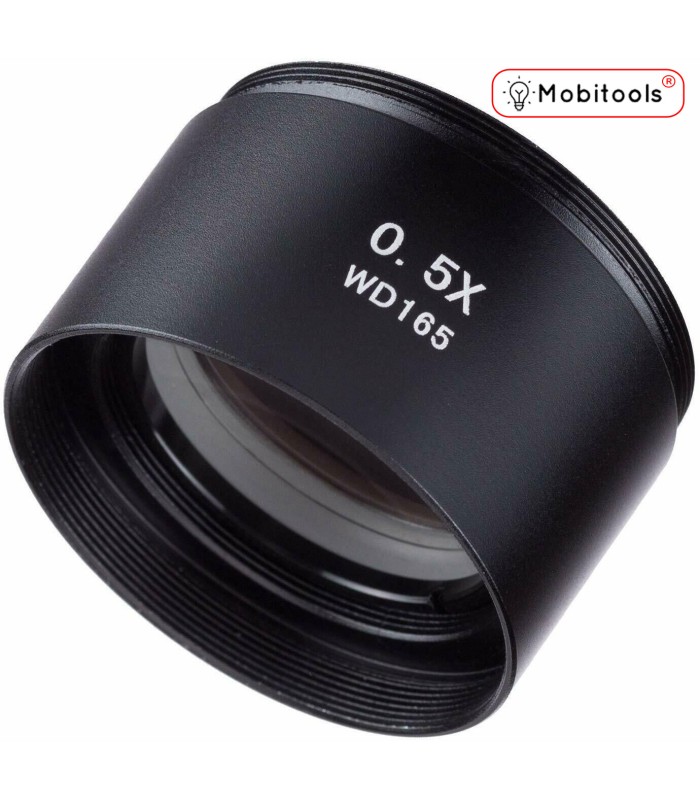

SM05 0.5X Barlow Lens For Microscopes (48mm) compatible Amscope

The SM05 0.5X Barlow Lens (48mm) is a high-quality auxiliary lens designed to expand the capabilities of your stereo microscope. Compatible with most AmScope stereo zoom microscope models, this Barlow lens doubles your working distance and increases the field of view — allowing for greater flexibility and clarity during observation.

Features:

• Magnification: 0.5X auxiliary lens for enhanced viewing range

• Thread Size: 48mm – fits most AmScope stereo zoom microscopes

• Working Distance: Doubles the standard working distance for easier sample handling

• Optical Quality: Precision-ground glass lenses for sharp, distortion-free images

• Build: Durable metal housing with anti-reflective coating

• Ease of Use: Simple screw-on installation with secure fit

Technical Specification

• Model: SM05

• Product Type: Auxiliary Barlow Lens

• Magnification: 0.5X

• Thread Diameter: 48mm

• Compatibility: Compatible with AmScope, RELIFE, Yaxun, RF4, and other 48mm stereo microscope objectives

• Function: Extends working distance and doubles field of view for stereo zoom microscopes

• Optical Material: High-quality optical glass with multi-layer anti-reflective coating

• Housing Material: Anodized aluminum alloy

• Mount Type: Screw-on type (M48 × 1 thread)

• Working Distance (with lens): Approx. 165mm (varies by microscope model)

• Effect on Magnification: Reduces total magnification by half (0.5X factor)

• Optical Performance: High clarity, distortion-free, wide-field imaging

• Lens Coating: Anti-glare, anti-fog, and scratch-resistant coating

• Color: Black

• Weight: Approx. 120g

• Usage: Ideal for microscope applications requiring larger working space, such as soldering, rework, and PCB inspection

Package Includes:

• 1 × SM05 0.5X Barlow Lens (48mm)

• 1 × Protective Lens Cap (Front & Rear)

• 1 × Protective Box
