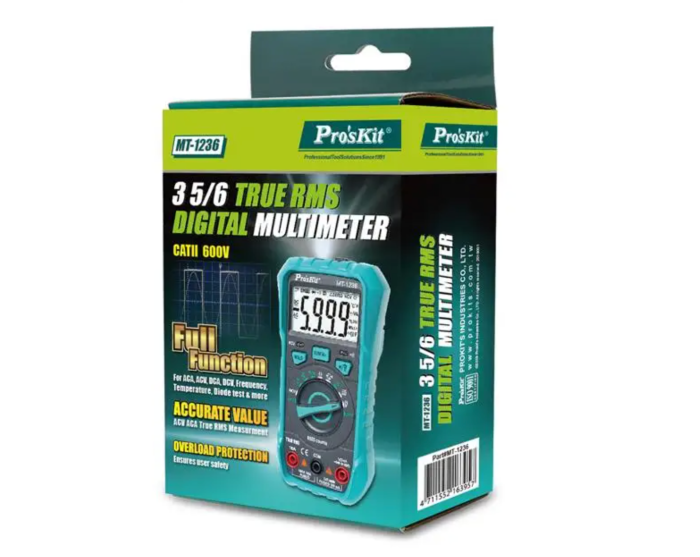

Pro'sKit Proskit MT-1236 True RMS Digital Multimeter ACV DCA DCV Automatic Range

Full Function

For ACA, ACV, DCA, DCV, Frequency, Cycle Duty, Diode test and more

Accurate Value

w/ ACV ACA True RMS Measurment

Overload Protection

Ensures user safety

Item#	MT-1236 True RMS Digital Multimeter
LCD Display	3 5/6 5999 Counts
DCV	600mV/6V/60V/600V ±（0.5% +5d）
ACV	600mV/6V/60V/600V ±（1% +4d） TRUE-RMS
DCA	60mA/600mA ±（1.2% +5 d） , 10A±（3.0% +5d）
ACA	60mA/600mA ±（1.5% +5 d） , 10A±（3.0% +5d）TRUE-RMS
Frequency	9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz ±（1.5% +5d）
Duty Cycle	1%~99%±（2.5% +5 d）
ResistanceΩ	600Ω/6k/60k/600k/6M/60MΩ ±（0.8% +5d）
Capacitance	60nF/600nF/6uF/60uF/600uF/6mF ±（4% + 5d）,100mF ±（4% +10d）
Temperature(℃/℉)	-20℃~1000℃±（1% + 3d） -4℉~2372℉±（1% + 3d）
Continuity Buzzer	≤30Ω , buzzer beeps
Diode Test	Y
NCV Detection	Y
Data Hold	Y
LED Light	Y
LCD Backlight	Y
Analog Bar	Y
Low Battery Indication	Y
Accessories	Test Lead, K-type thermocouple, Manual
Power	1.5V AAA x 3pcs (Not Included)
Dimension	148mm x 79mm x 48mm
Weight	210g(without battery)

Other Function: Auto Power Off

More Information
Item Returns	This item can be returned

3-5/6 True-RMS Digital Multimeter
