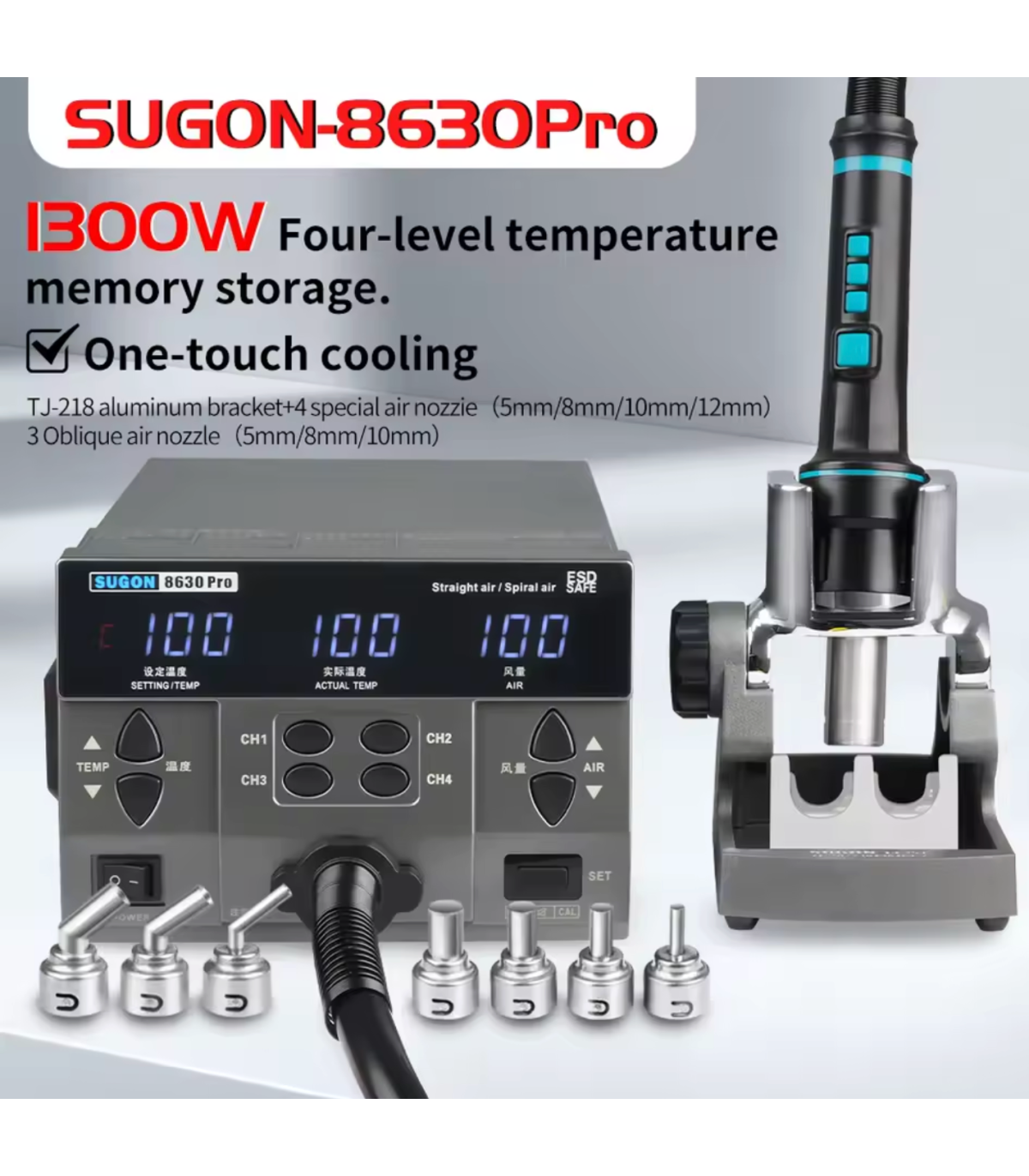

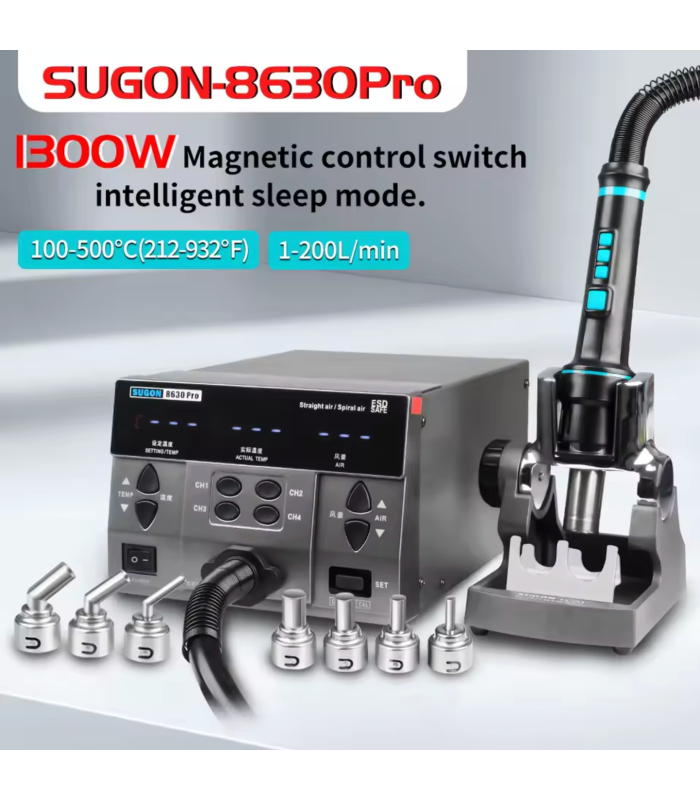

SUGON 8630Pro 1300W Hot Air Gun Digital Display BGA Rework Station machine

The SUGON 8630Pro 1300W Hot Air Gun Digital Display BGA Rework Station Machine is a professional-grade hot air rework station designed for mobile phone motherboard repair, BGA soldering, IC welding, ECU repair, and SMD desoldering. This SUGON 8630Pro hot air gun digital display BGA rework station delivers powerful and stable performance with precise temperature and airflow control.

The SUGON 8630Pro 1300W hot air rework station machine features a digital display for real-time temperature and air volume monitoring, making it ideal for advanced micro-soldering and electronics repair tasks.

Note:
After March 20, 2024, the SUGON 8630Pro comes with an upgraded handle with pluggable heating core. The upgraded version includes 4 straight nozzles (5mm, 7mm, 10mm, 12mm) and no longer includes spiral or bend nozzles.

Key Features

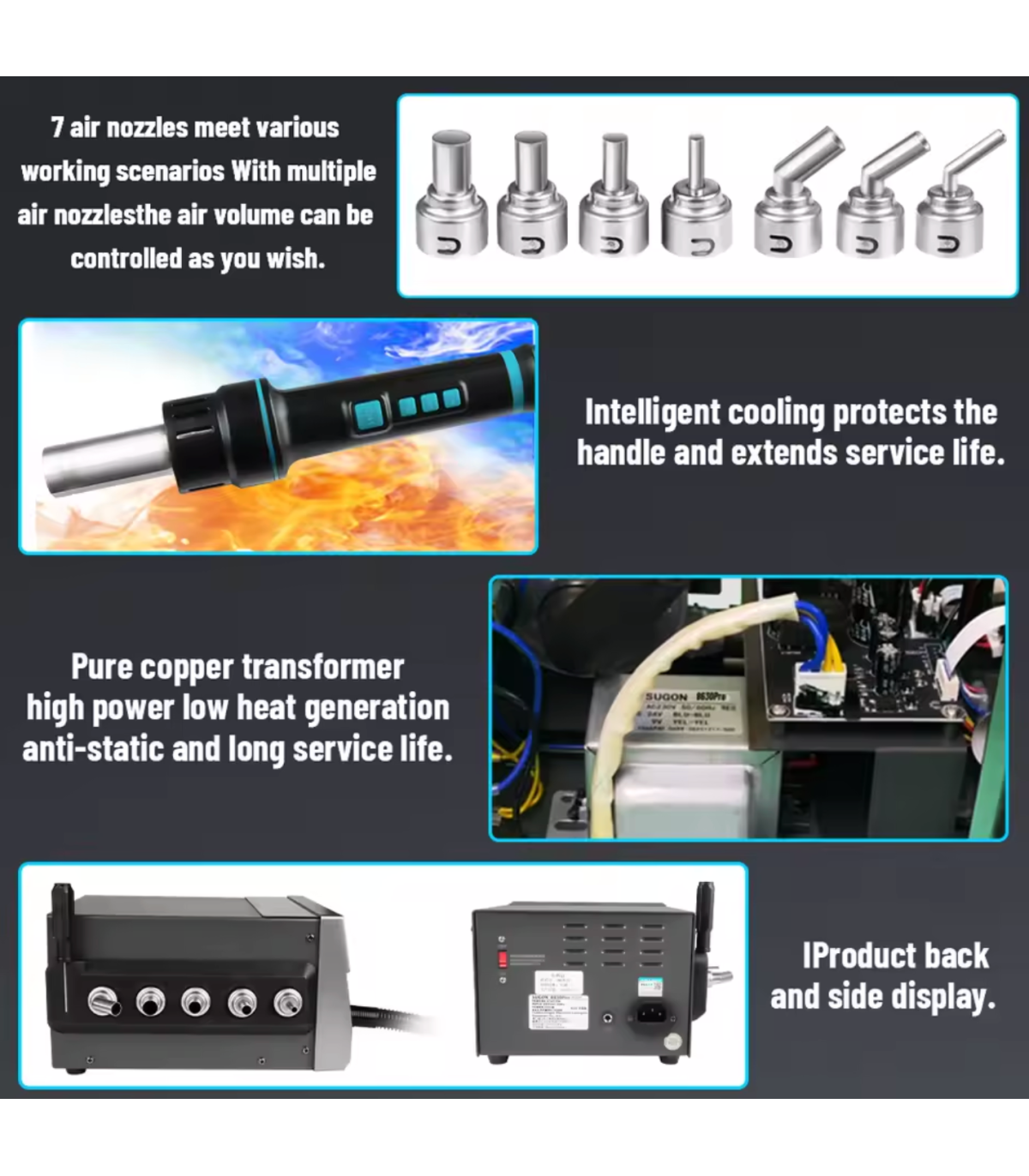

• 1300W High Power Output
  Pure copper transformer ensures stable, high-power heating with fast temperature recovery.

• Digital Display Control
  Displays set temperature, real-time temperature, and air volume for accurate operation.

• Upgraded Pluggable Heating Core Handle
  Innovative handle design allows easy replacement and future upgrades without complex disassembly.

• Automatic Cooling Protection
  High-air-volume cooling function extends heating element lifespan and protects the handle.

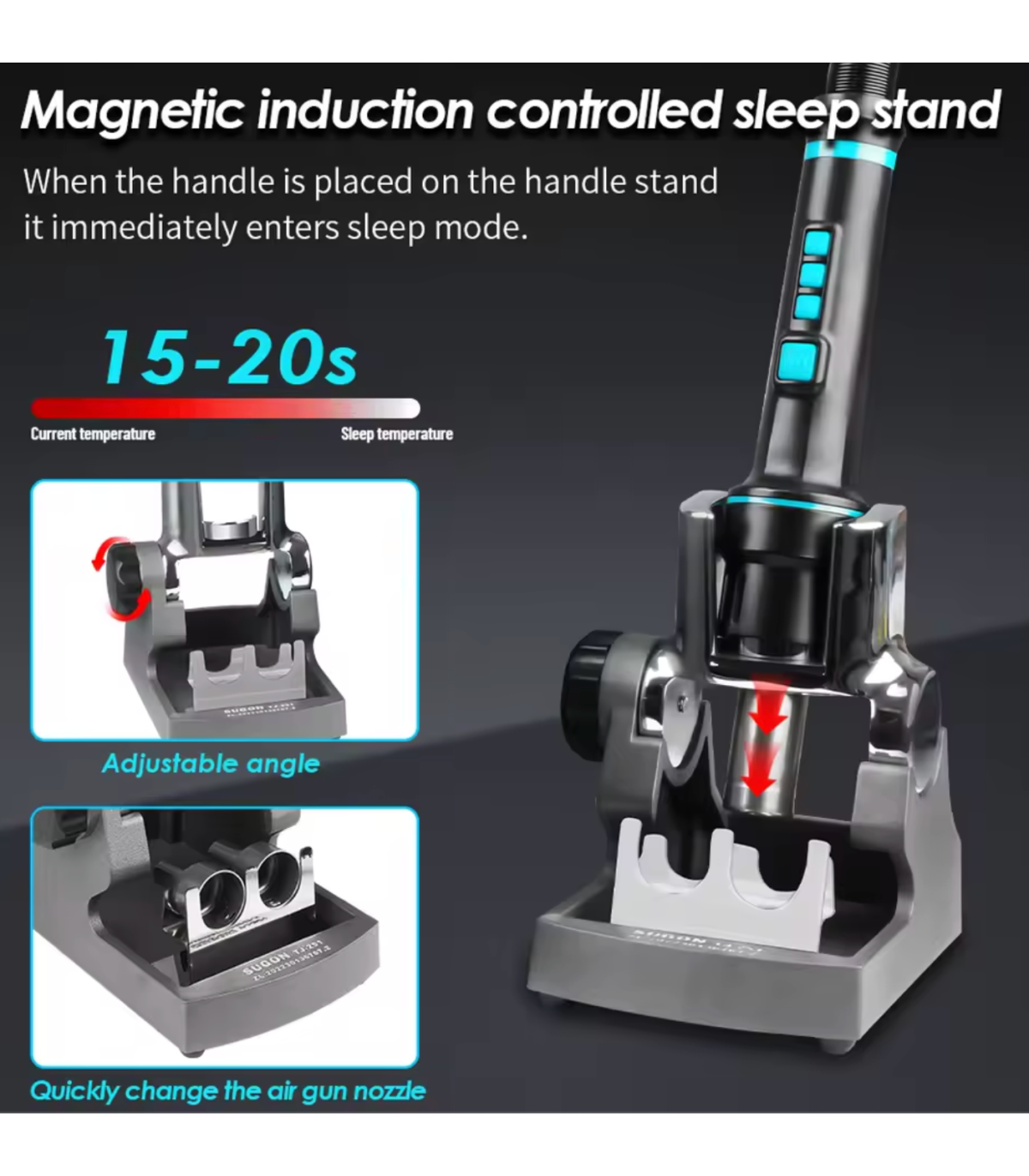

• Magnetic Sleep Function
  When placed on the handle bracket, the air gun automatically enters sleep mode. Parameters can still be set while sleeping.

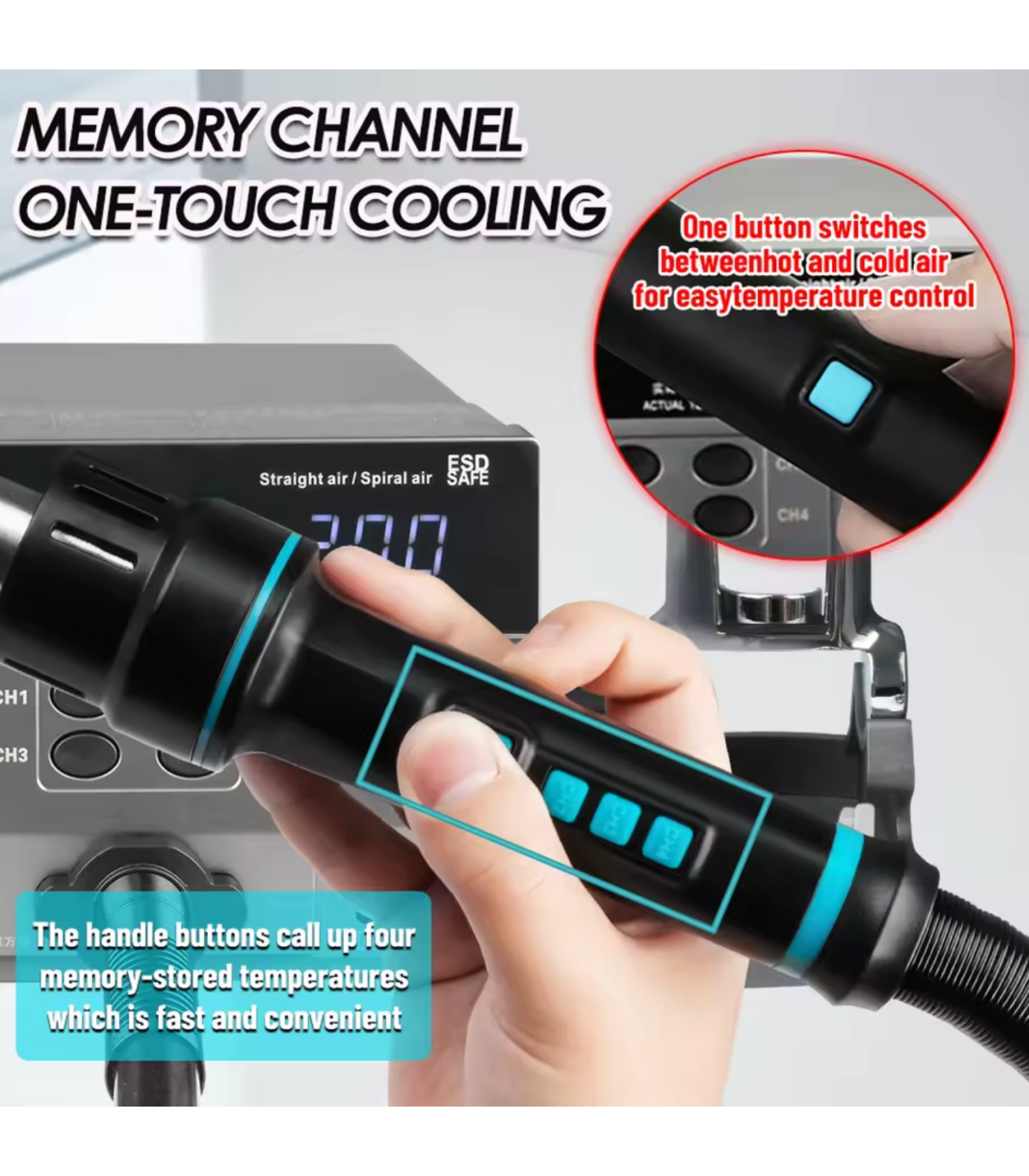

• Memory Channel Control (CH1–CH4)
  The handle can directly call and set the host’s four stored working modes.

• Cold Air Function
  One-button cold air feature allows quick cooling during soldering and desoldering.

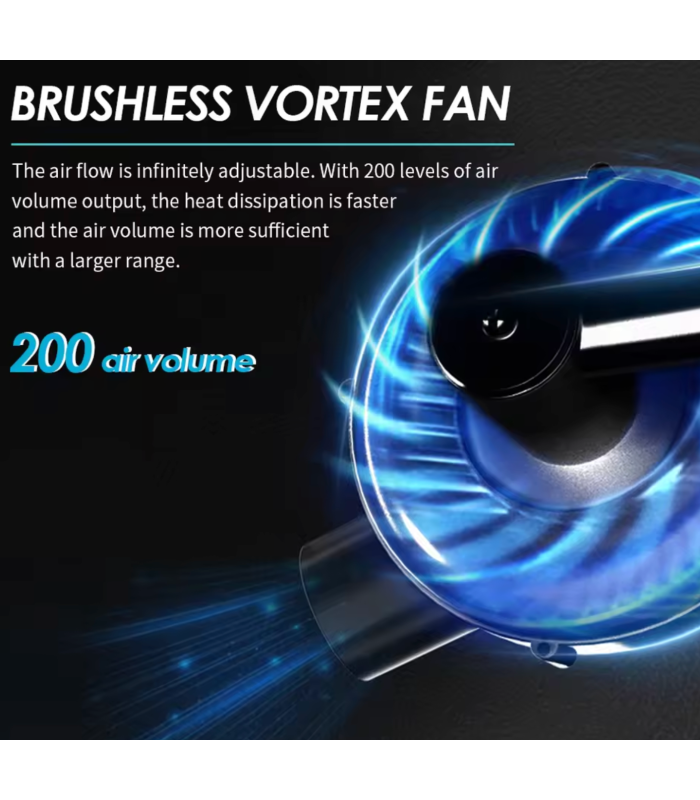

• Large Air Volume & Quiet Operation
  Brushless eddy current fan provides strong airflow with low noise and long service life.

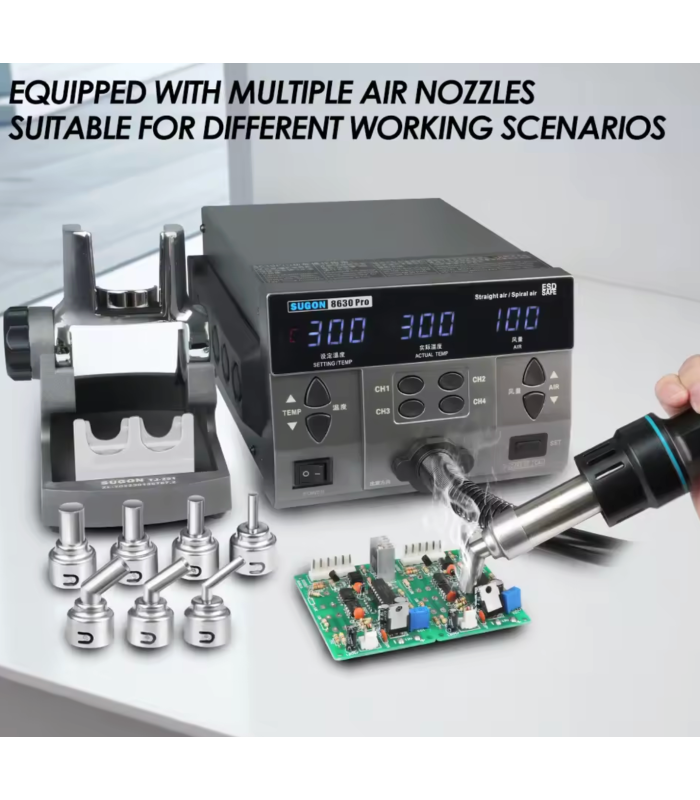

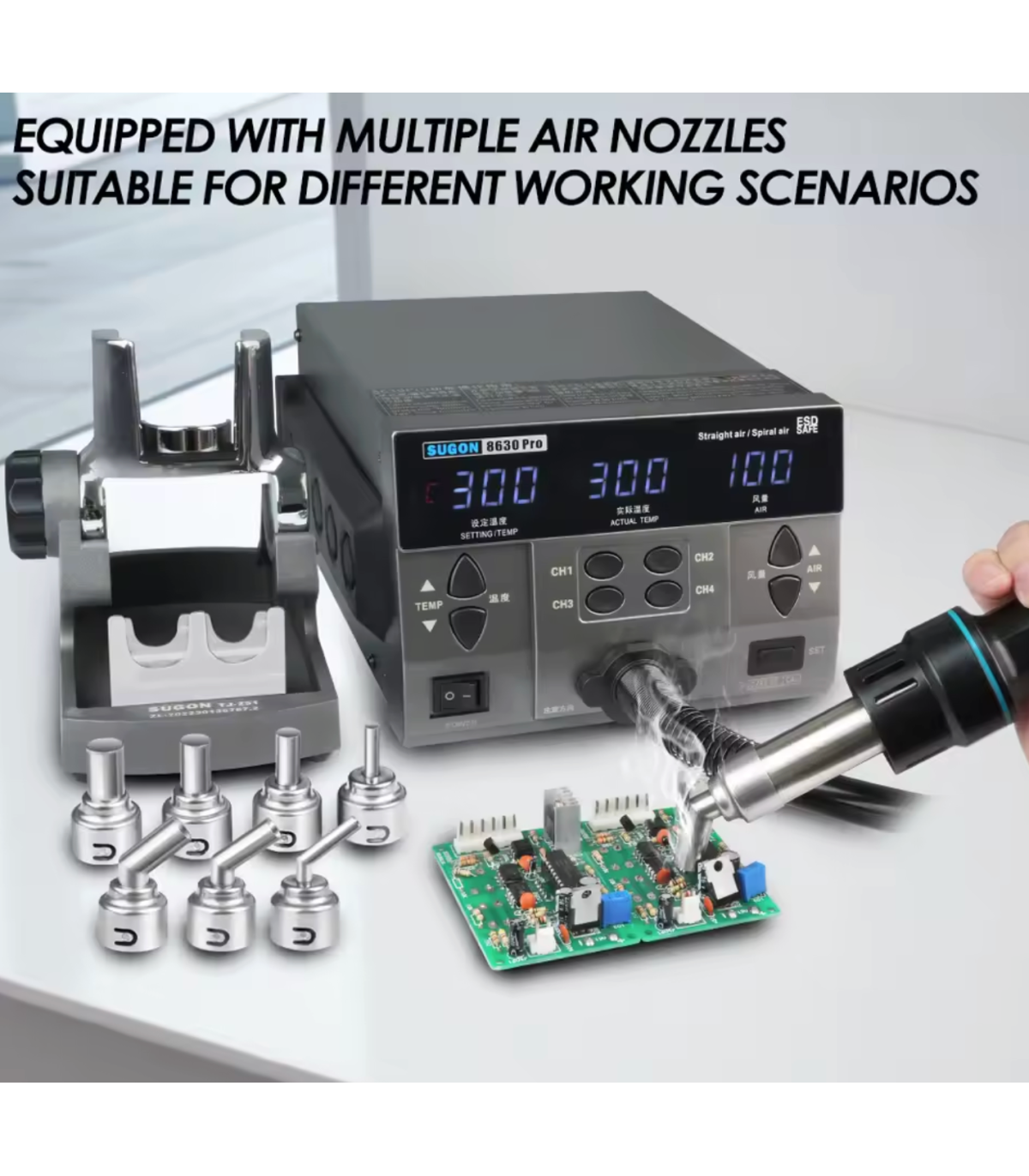

Included Nozzles

• Straight Air Nozzle 5mm

• Straight Air Nozzle 7mm

• Straight Air Nozzle 10mm

• Straight Air Nozzle 12mm

Specifications

• Model: SUGON 8630Pro

• Power: 1300W

• Input Voltage: AC 110V / 220V

• Temperature Range:

  • 100℃ ~ 500℃

  • 212℉ ~ 932℉

• Air Volume Range: 1 ~ 200 Levels

• Overall Dimensions: 188 × 245 × 135 mm

Applications

• Mobile phone motherboard repair

• BGA chip soldering and desoldering

• smd component rework

• IC welding and removal

• ECU electronics repair

• Professional electronics repair workshops

Package Includes

• 1 × SUGON 8630Pro Main Machine

• 1 × Hot Air Gun Handle

• 1 × Handle Bracket

• 4 × Air Nozzles (5mm / 7mm / 10mm / 12mm)

• 1 × Ground Wire

• 1 × Power Cord
