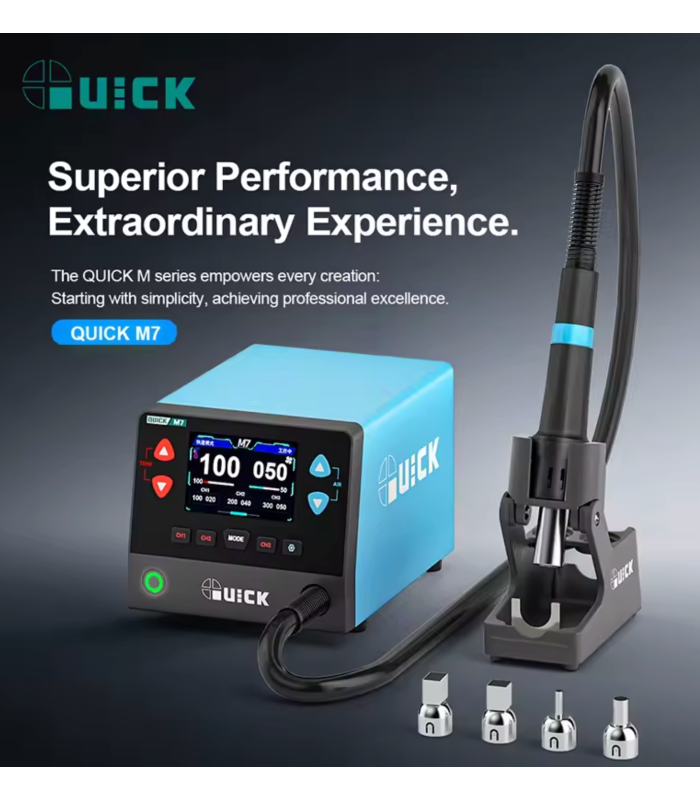

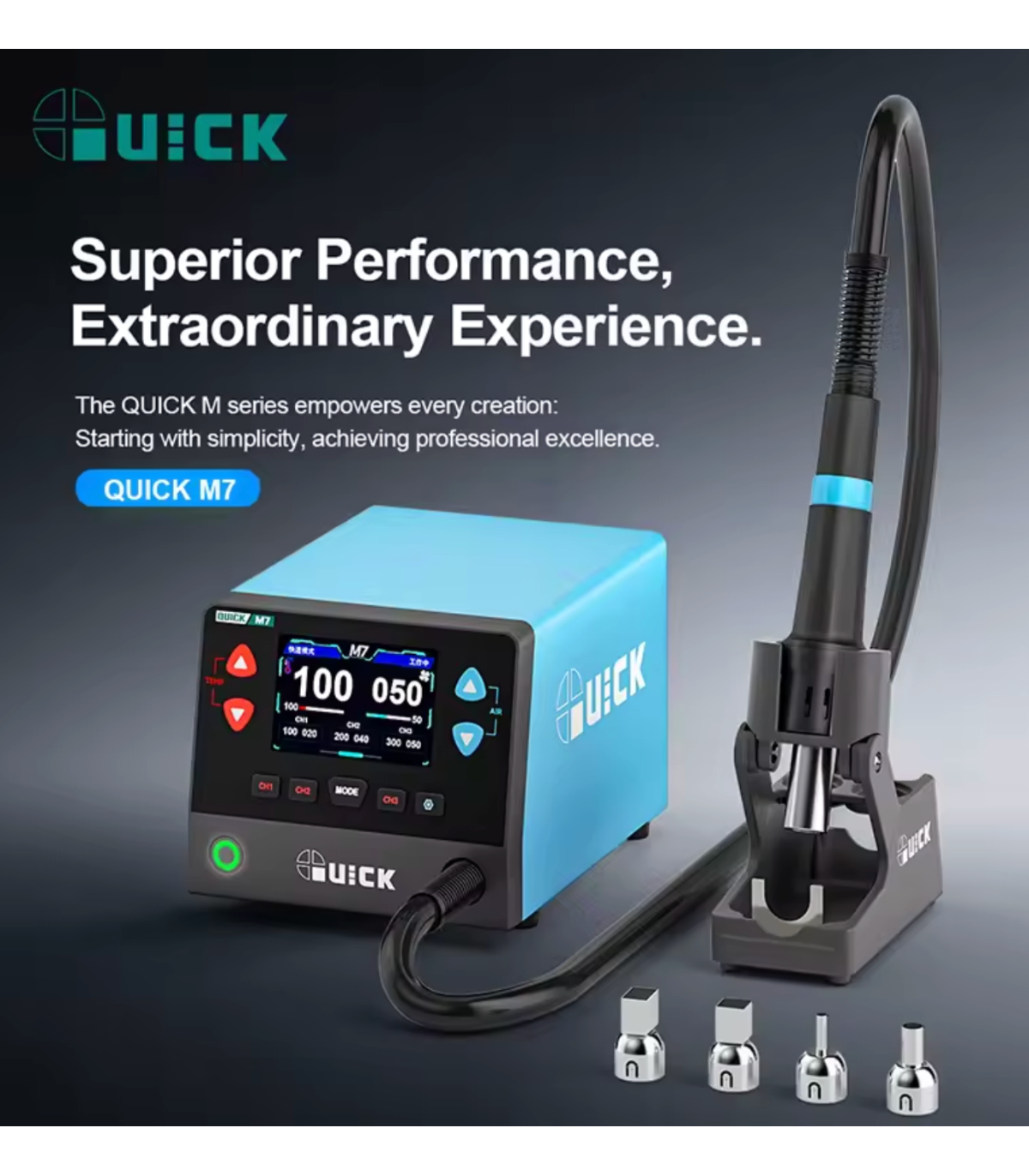

QUICK M7 220-240v 1000W Intelligent Lead-free Soldering Station 9-channel

The QUICK M7 1000W Intelligent Lead-Free Hot Air Desoldering Station is a powerful and precise repair tool designed for professional electronics repair, including mobile phones, tablets, laptops, and PCB boards.
With 1000W high power output, rapid heating, and intelligent 9-channel temperature control, this station delivers fast, stable, and efficient desoldering for both small and large components.

Equipped with a high-definition TFT LCD display, adjustable-angle air gun holder, and magnetic induction sleep function, the QUICK M7 ensures safe operation, reduced energy consumption, and extended tool lifespan. It supports multiple heating modes, making it suitable for 0402 small chips, BGA large chips, and curved heating applications.

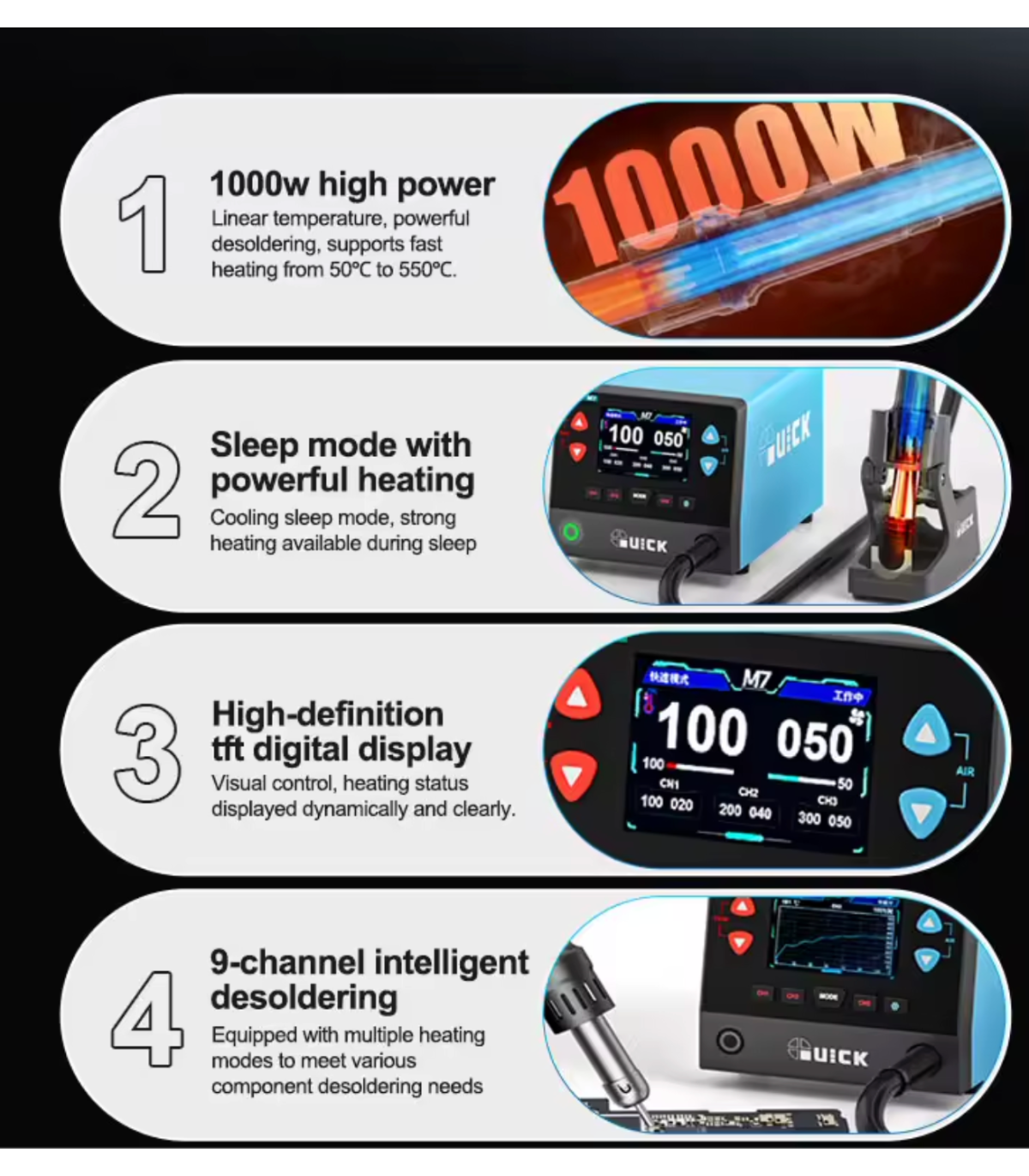

Key Features

• Condition: 100% Brand New

• Type: Intelligent Lead-Free Hot Air Desoldering Station

• Model: QUICK M7

• Power Output: 1000W high-power rapid heating

• Voltage: AC 220–240V

• Temperature Range: 100°C – 550°C

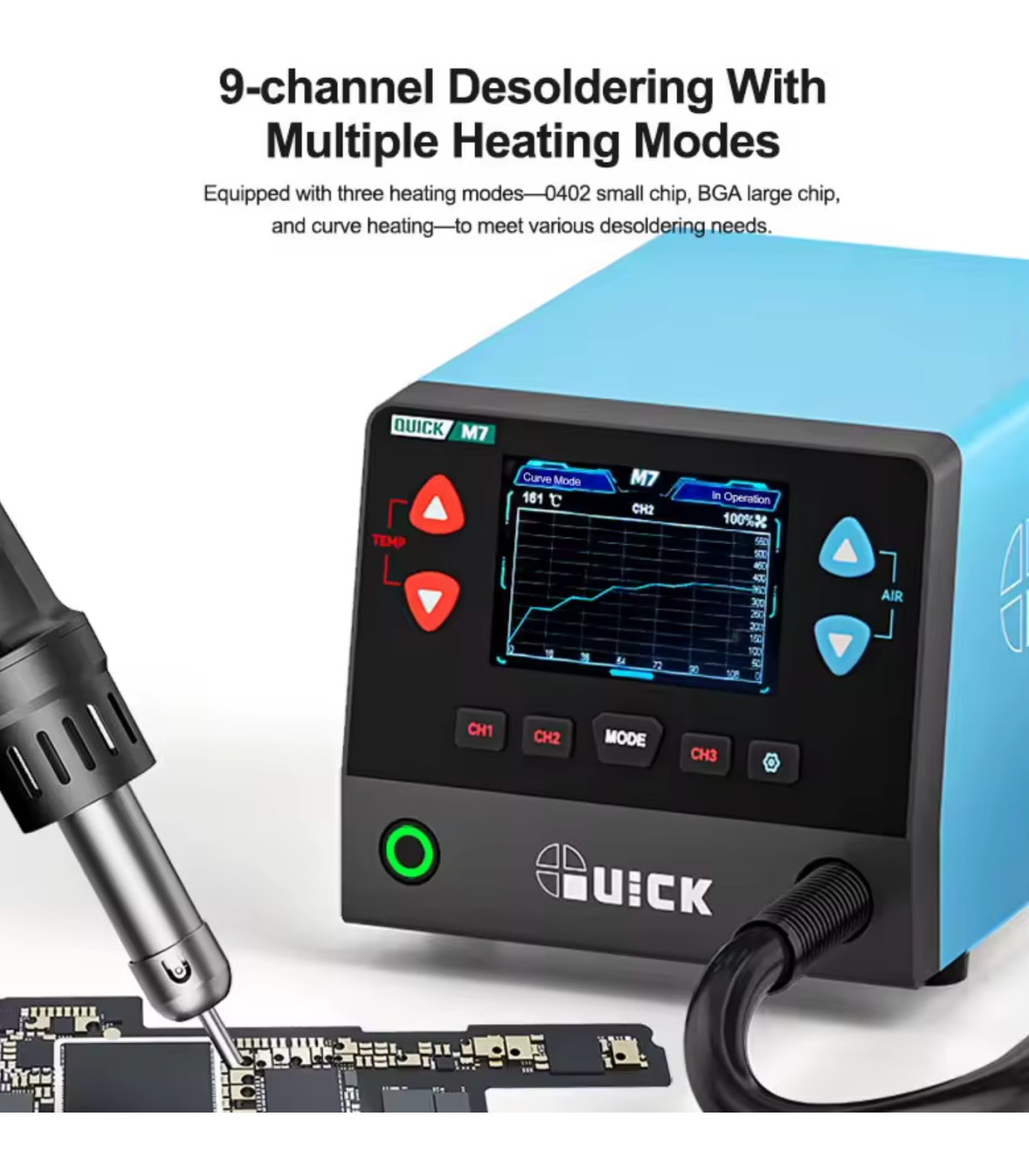

• Heating Modes: 9-channel intelligent desoldering (small chips, BGA, curve heating)

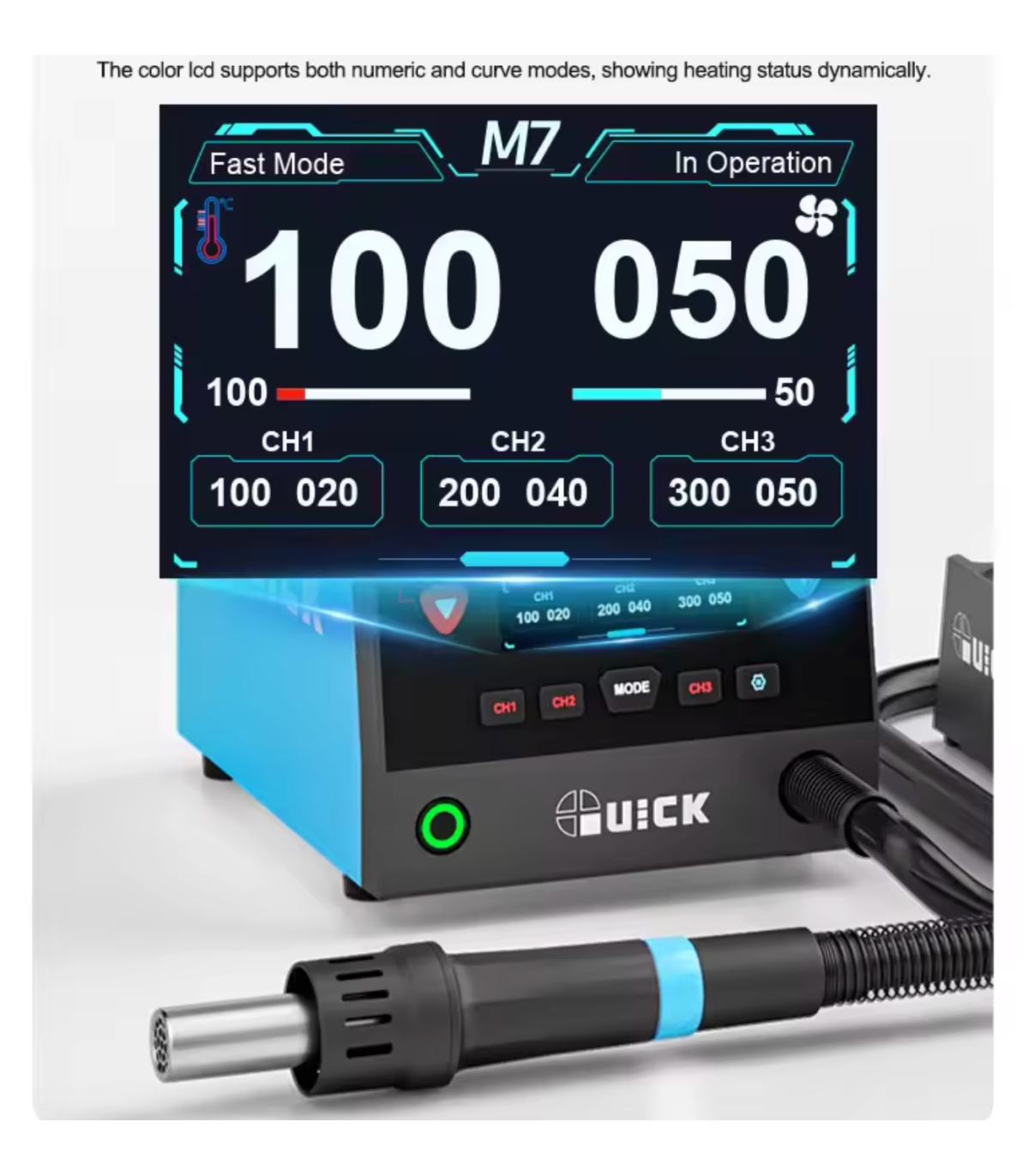

• Display: High-definition TFT color lcd (numeric & curve modes)

• Airflow Control: Level 1–100, max 50L/min

• Control System: Magnetic induction air gun with automatic sleep mode

• Cooling System: High-efficiency forced cooling & cooling sleep mode

• Usage: Suitable for mobile phone, tablet, laptop, and PCB repair

Advantages

• Power Performance: 1000W output ensures fast heating and efficient desoldering.

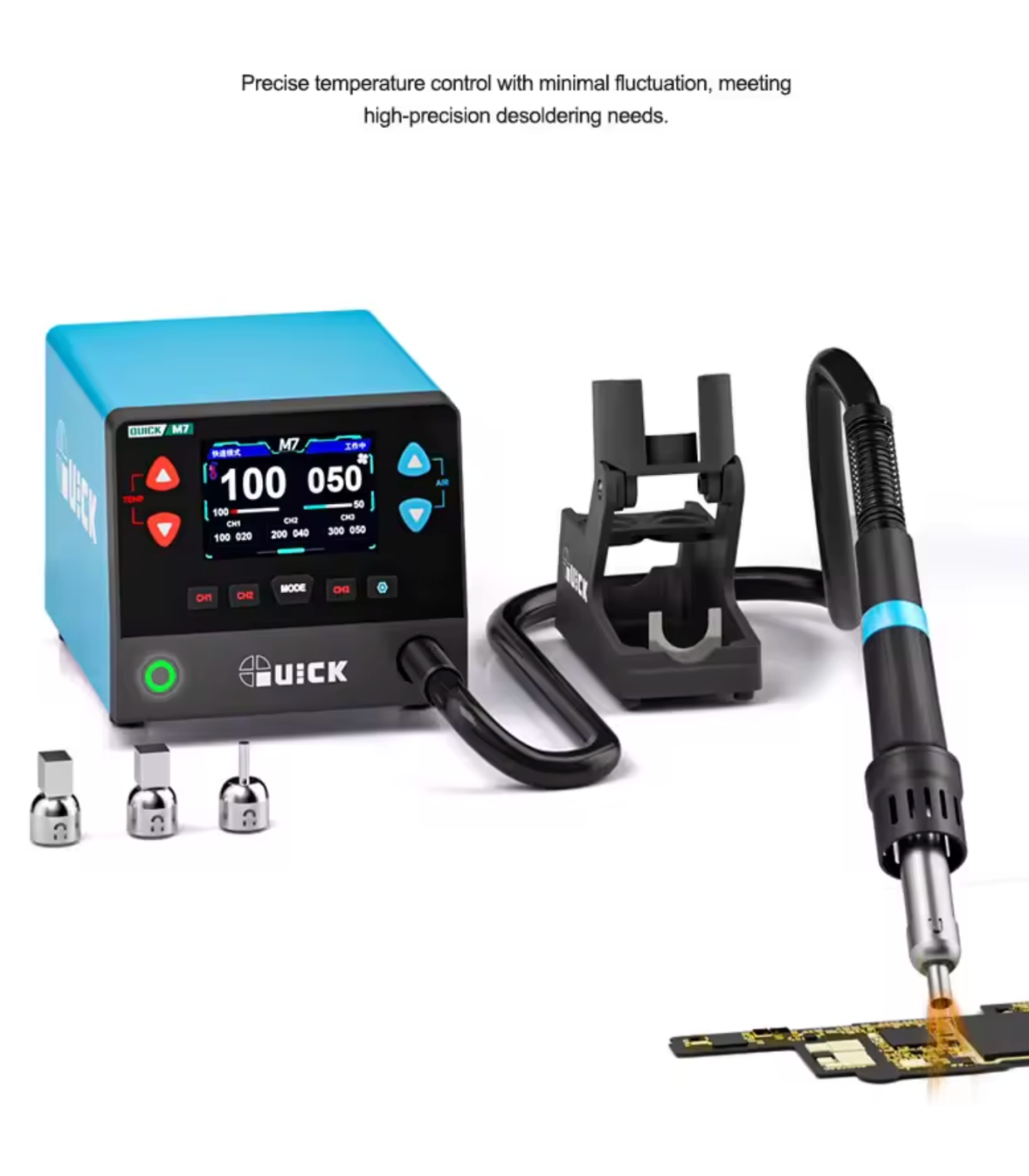

• Temperature Control: Minimal temperature fluctuation for sensitive components.

• Intelligent Operation: 9 preset channels for different chip sizes and heating needs.

• Enhanced Safety: Auto sleep when air gun is docked, reducing energy use and risk.

• Extended Lifespan: Optimised heating design reduces element wear by over 30%.

• Professional Repair Tool: Ideal for BGA rework, motherboard repair, and lead-free soldering.

Product Specifications

• Product Name: QUICK M7 Intelligent Hot Air Desoldering Station

• Display Type: lcd

• Power: 1000W

• Working Voltage: AC 220V

• Temperature Range: 100–550°C

• Airflow Level: 1–100

• Max Air Volume: 50L/min

• Nozzles: E0005 / E0010 / E1217 / E1313

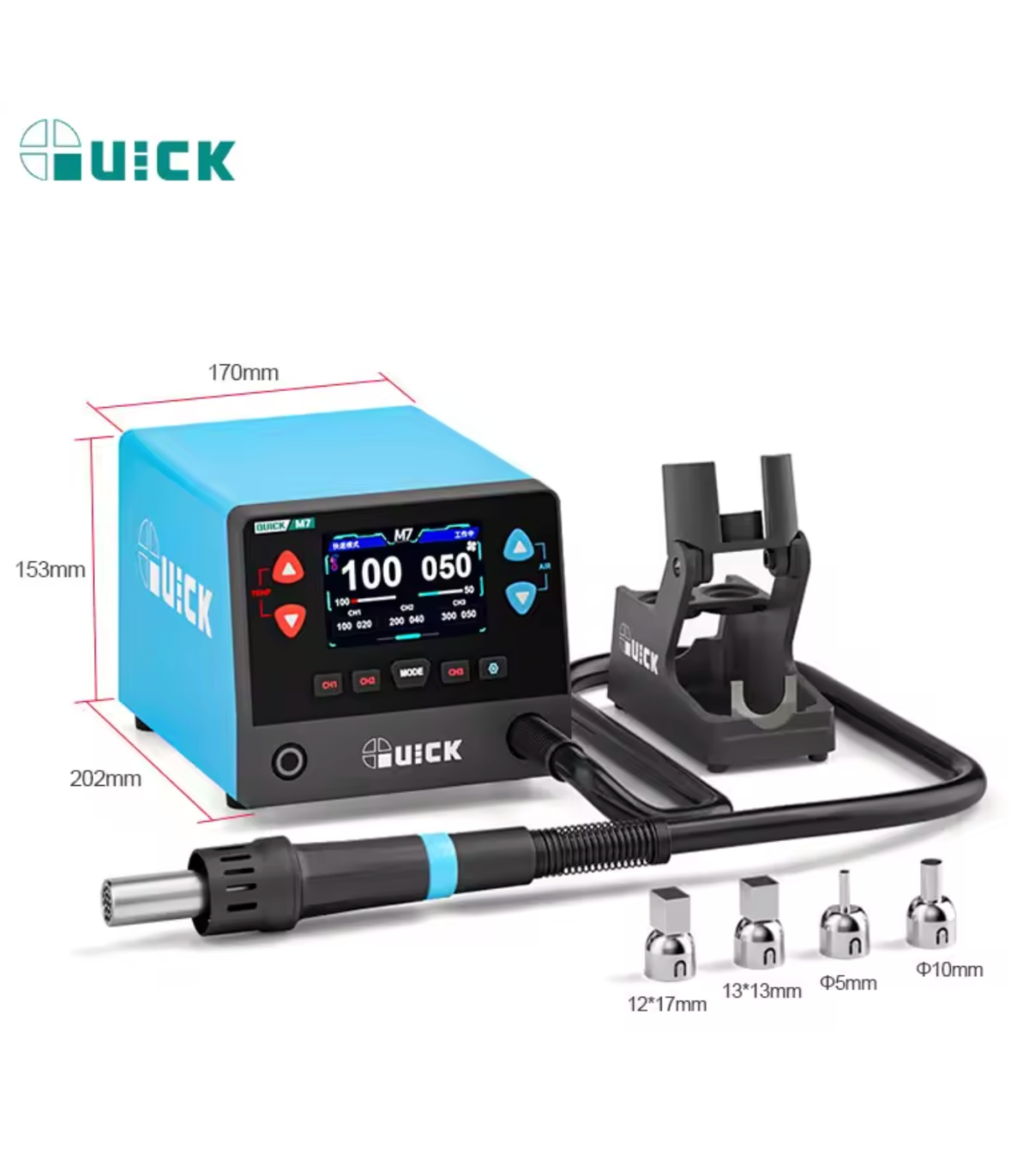

• Product Size: 170 × 202 × 153 mm

• Net Weight: Approx. 3.3 kg

• Gross Weight: Approx. 6 kg

Set of 4 Nozzles Included

• Circle 5mm

• Circle 10mm

• Square 12 × 17mm

• Square 13 × 13mm

Package Includes

• 1 × QUICK M7 220–240V 1000W Intelligent Lead-Free Hot Air Desoldering Station

• 1 × Intelligent Control Handpiece

• 1 × Adjustable-Angle Soldering Stand / Holder

• 1 × Set of 4 Nozzles

• 1 × User Manual
