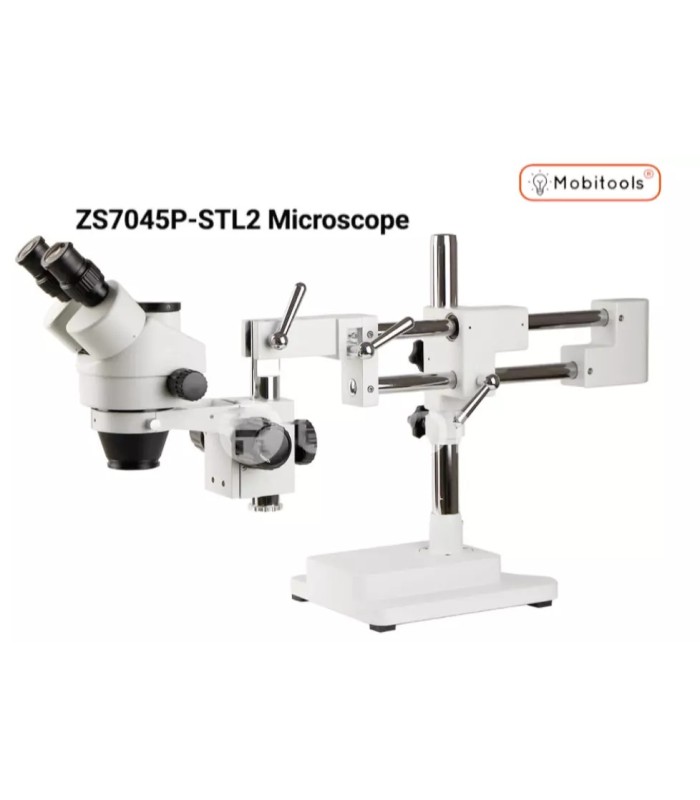

Boom 7-50X Dual Arm Stereo Microscope ZSM7045-STL2

The Boom 7-50X Dual Arm Stereo Microscope ZSM7045-STL2 is a professional-grade optical instrument designed for precision inspection and repair work. With a magnification range of 7X to 50X, it delivers clear, detailed visuals, making it perfect for electronics repair, circuit board inspection, jewelry evaluation, and other fine-detail applications. The dual-arm boom stand provides stability and flexibility, allowing easy positioning for different tasks.

Features:
Condition: Brand New
Model: ZSM7045-STL2
Magnification Range: 7X – 50X
Type: Dual Arm Stereo Microscope
Stand: Boom stand for flexible positioning

Technical Specification

• Model: ZSM7045-STL2

• Microscope Type: Dual Arm Stereo Zoom Microscope

• Magnification Range: 7X – 50X (continuous zoom)

• Zoom Ratio: 6.4:1

• Eyepieces: WF10X / 20mm (widefield, high-eye-point)

• Objective Lens: 0.7X – 5.0X zoom objective

• Head Type: Binocular, 45° inclined, 360° rotatable

• Interpupillary Distance: 54 – 76mm adjustable

• Diopter Adjustment: ±5 on both eyepieces

• Working Distance: 100mm standard (extendable with auxiliary lens)

• Focus Mechanism: Rack and pinion with tension adjustment

• Stand Type: Dual arm boom stand with 360° rotation

• Stand Base Size: Approx. 380mm × 260mm

• Horizontal Arm Length: Approx. 420mm

• Vertical Post Height: Approx. 380mm

• Illumination: External light source supported (LED ring or fiber light compatible)

• Mount Diameter: 76mm

• Field of View: 4.4mm – 31.4mm (depending on zoom level)

• Material: All-metal construction with anti-static finish

• Color: White / Black

• Net Weight: Approx. 12.5 kg

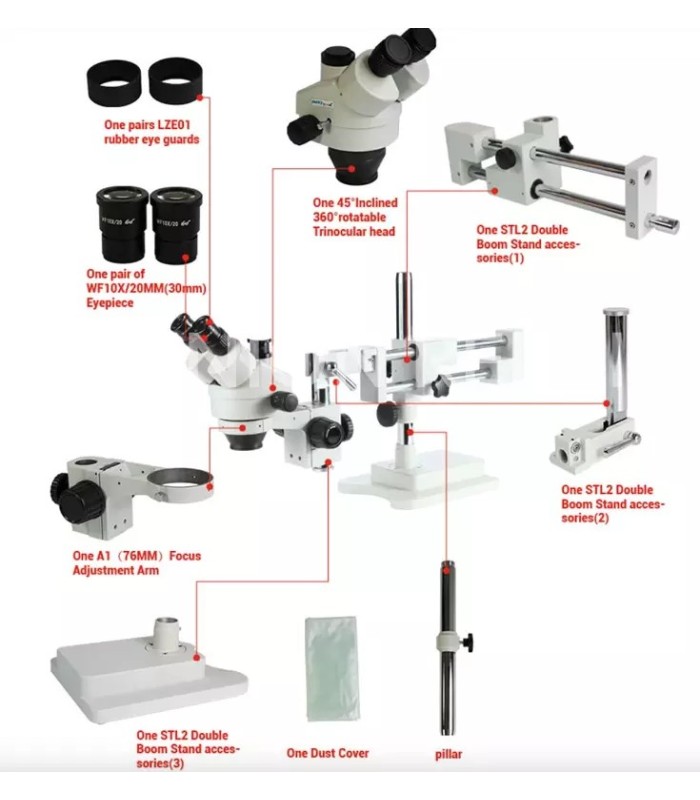

Package Includes:
1 × Boom 7-50X Dual Arm Stereo Microscope ZSM7045-STL2
