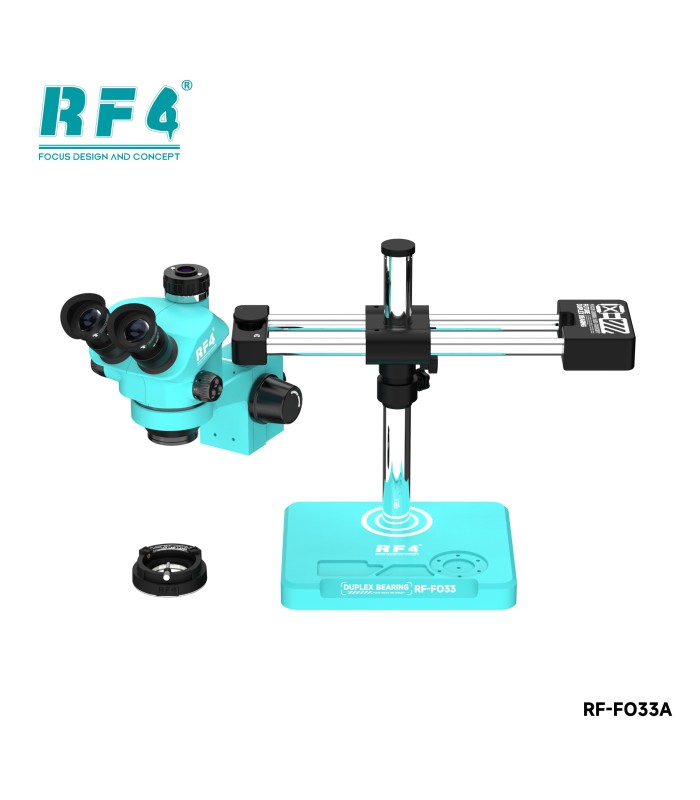

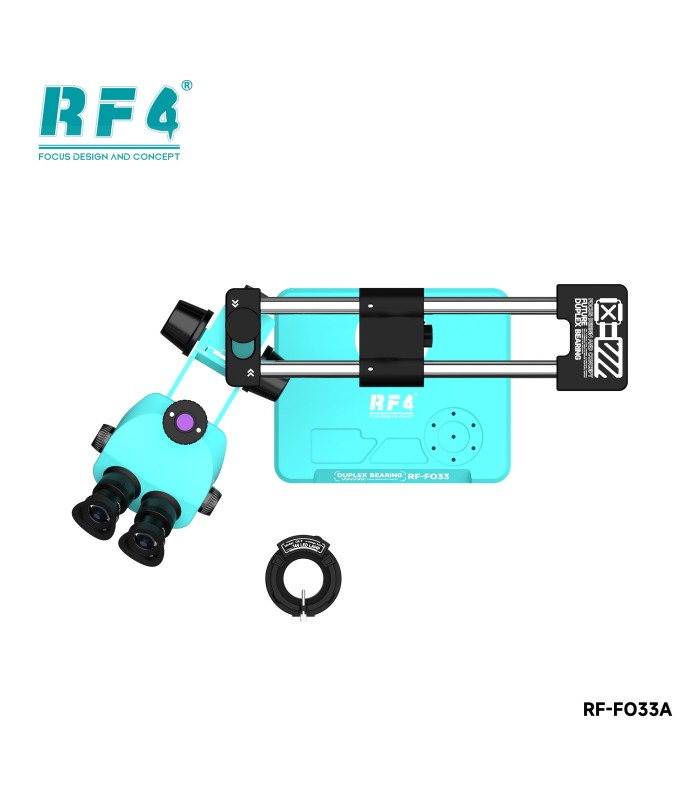

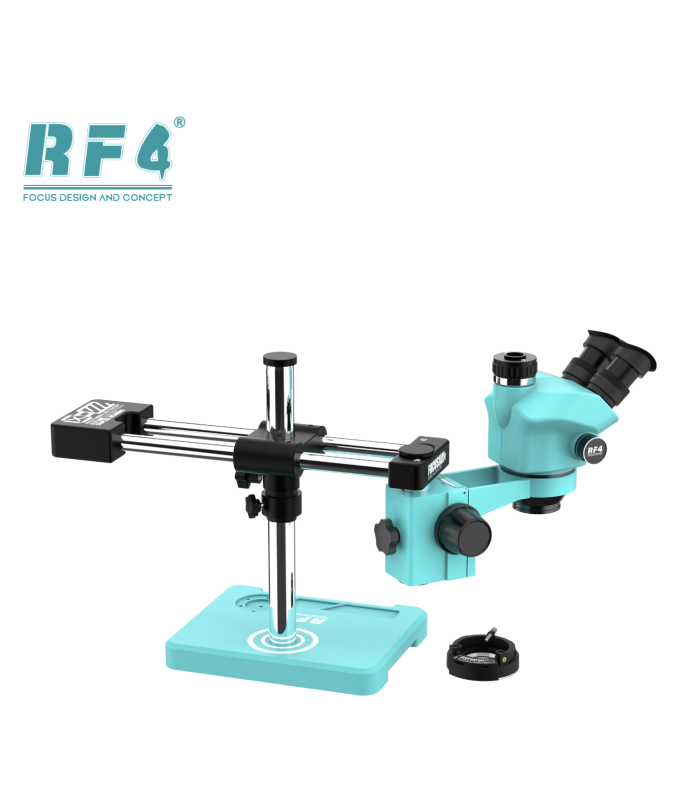

RF4 RF-FO33A 7050TV 7-50X Zoom Trinocular Stereo Boom Microscope

The RF4 RF-FO33A 7050TV Trinocular Stereo Boom Microscope offers a 7X–50X zoom magnification range, providing clear and detailed visuals for precision tasks. With its trinocular design, it supports camera or video integration for recording and inspection. The sturdy boom stand allows flexible positioning, making it ideal for electronics repair, PCB inspection, jewelry evaluation, and other professional applications.

Features:
Condition: Brand New
Model: RF-FO33A 7050TV
Magnification Range: 7X – 50X Zoom
Type: Trinocular Stereo Microscope
Stand: Boom stand for stable and adjustable positioning

Technical Specification

• Brand: RF4

• Model: RF-FO33A (7050TV)

• Microscope Type: Trinocular Stereo Zoom Microscope with Boom Stand

• Magnification Range: 7X – 50X continuous zoom

• Zoom Ratio: 6.4:1

• Eyepieces: WF10X / 20mm widefield high-eye-point eyepieces

• Objective Lens: 0.7X – 5.0X zoom objective

• Head Type: Trinocular, 45° inclined, 360° rotatable

• Trinocular Port: Standard C-Mount (supports hdmi / USB camera connection)

• Interpupillary Distance: Adjustable from 54mm – 76mm

• Diopter Adjustment: ±5 diopter on both eyepieces

• Working Distance: 100mm standard (extendable with auxiliary lens)

• Focus Mechanism: Rack and pinion system with tension adjustment

• Stand Type: Dual-arm boom stand with 360° rotation

• Base Size: Approx. 380mm × 260mm

• Horizontal Arm Length: Approx. 420mm

• Vertical Post Height: Approx. 380mm

• Illumination: External light source supported (LED ring or fiber optic)

• Mount Diameter: 76mm microscope head holder

• Field of View: 4.4mm – 31.4mm (depending on zoom level)

• Material: All-metal construction with anti-static coating

• Color: White / Black

• Weight: Approx. 13 kg

• Application: Ideal for micro-soldering, PCB inspection, precision assembly, and optical testing

Package Includes:
1 × RF4 RF-FO33A 7050TV 7-50X Zoom Trinocular Stereo Boom Microscope
